DC Blower
MFB4010
40 x 40 x 10 m
Airflow
1.1~3.2 CFM
Speed
4000~10000 RPM
Noise
18.9~37 dB(A)
Product Specifications
| Size | 40 x 40 x 10 mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFB4010D05-LLS | 5 | 0.05 | 0.25 | 4000 | 1.09 | 2.15 | 18.9 | Sleeve |
| MFB4010D05-LS | 5 | 0.11 | 0.55 | 5000 | 1.34 | 3.03 | 23.3 | Sleeve |
| MFB4010D05-MS | 5 | 0.15 | 0.75 | 6000 | 1.64 | 4.89 | 26 | Sleeve |
| MFB4010D05-HS | 5 | 0.21 | 1.05 | 7000 | 2.03 | 7.17 | 29.3 | Sleeve |
| MFB4010D05HHS | 5 | 0.25 | 1.25 | 8000 | 2.42 | 9.5 | 32.1 | Sleeve |
| MFB4010D05-VHS | 5 | 0.29 | 1.45 | 9000 | 2.76 | 12.86 | 35 | Sleeve |
| MFB4010D05-HVS | 5 | 0.35 | 1.75 | 10000 | 3.2 | 13.93 | 37 | Sleeve |
| MFB4010D1-LLS | 12 | 0.03 | 0.25 | 4000 | 1.09 | 2.15 | 18.9 | Sleeve |
| MFB4010D1-LS | 12 | 0.05 | 0.55 | 5000 | 1.34 | 3.03 | 23.3 | Sleeve |
| MFB4010D1-MB | 12 | 0.06 | 0.75 | 6000 | 1.64 | 4.89 | 26 | Ball |
| MFB4010D1-HB | 12 | 0.09 | 1.05 | 7000 | 2.03 | 7.17 | 29.3 | Ball |
| MFB4010D1-HHB | 12 | 0.1 | 1.25 | 8000 | 2.42 | 9.5 | 32.1 | Ball |
| MFB4010D1-VHB | 12 | 0.12 | 1.45 | 9000 | 2.76 | 12.86 | 35 | Ball |
| MFB4010D1-HVB | 12 | 0.15 | 1.75 | 10000 | 3.2 | 13.93 | 37 | Ball |

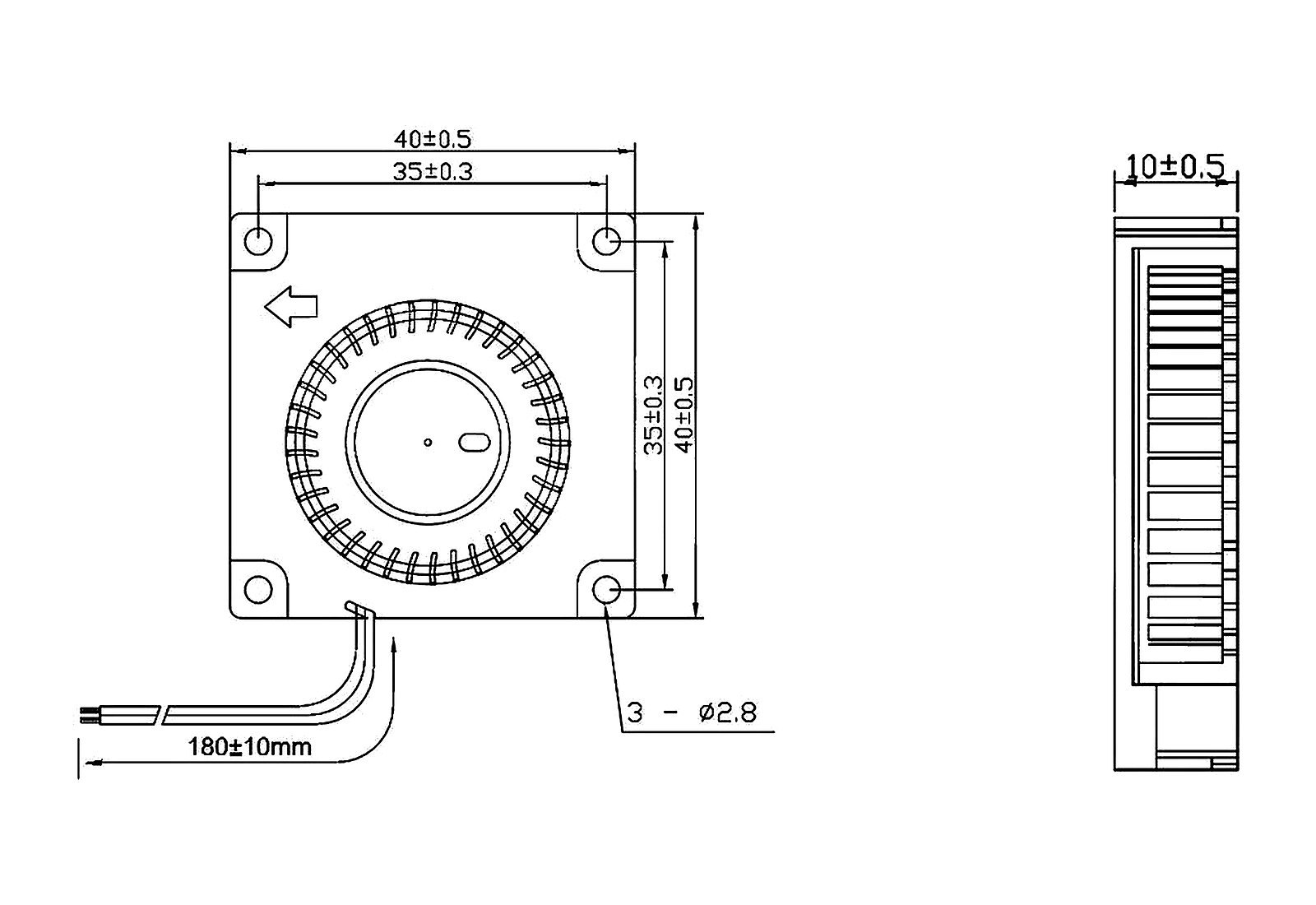

Dimension Drawing

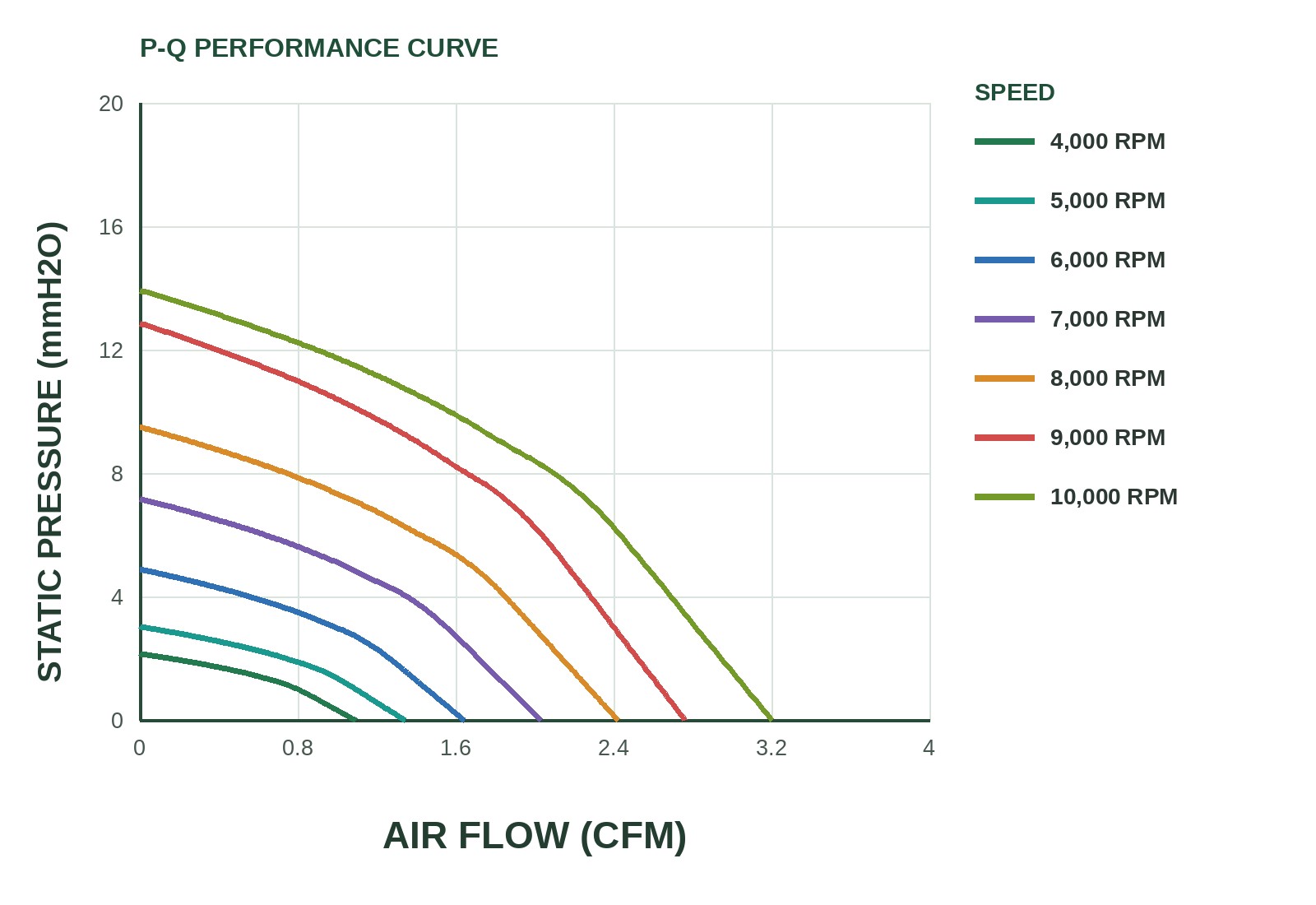

P&Q Curve
