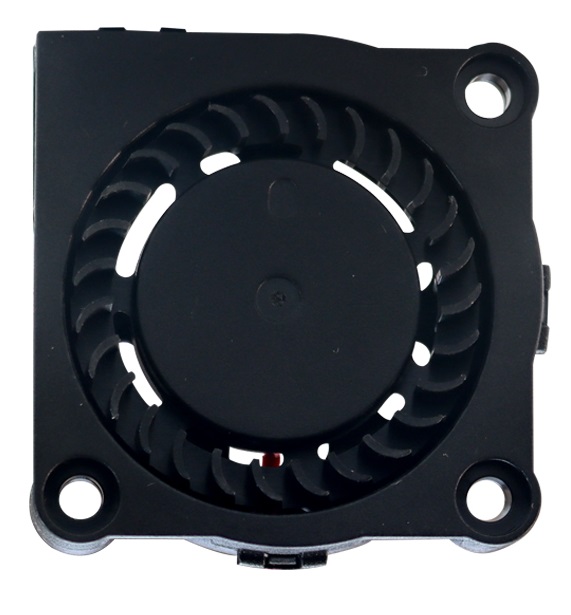

DC Blower
MFB4015
40 x 40 x 15 m
Airflow
1.4~3.3 CFM
Speed
4000~11000 RPM
Noise
29~49.4 dB(A)
Product Specifications
| Size | 40 x 40 x 15 mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFB4015D05-LLS | 5 | 0.07 | 0.38 | 5000 | 1.37 | 3.42 | 29 | Sleeve |
| MFB4015D05-LS | 5 | 0.09 | 0.48 | 6000 | 1.64 | 5.25 | 33.5 | Sleeve |
| MFB4015D05-MS | 5 | 0.12 | 0.6 | 7000 | 1.97 | 7.15 | 37.6 | Sleeve |
| MFB4015D05-HS | 5 | 0.17 | 0.84 | 8000 | 2.39 | 10.58 | 41.2 | Sleeve |
| MFB4015D05HHS | 5 | 0.22 | 1.08 | 9000 | 2.7 | 13.7 | 44.7 | Sleeve |
| MFB4015D05-VHS | 5 | 0.31 | 1.56 | 10000 | 2.95 | 17.7 | 47 | Sleeve |
| MFB4015D05-HVS | 5 | 0.35 | 1.8 | 11000 | 3.33 | 25.57 | 49.4 | Sleeve |
| MFB4015D1-LLS | 12 | 0.03 | 0.38 | 4000 | 1.37 | 3.42 | 29 | Sleeve |
| MFB4015D1-LS | 12 | 0.04 | 0.48 | 5000 | 1.64 | 5.25 | 33.5 | Sleeve |
| MFB4015D1-MB | 12 | 0.05 | 0.6 | 6000 | 1.97 | 7.15 | 37.6 | Ball |
| MFB4015D1-HB | 12 | 0.07 | 0.84 | 7000 | 2.39 | 10.58 | 41.2 | Ball |
| MFB4015D1-HHB | 12 | 0.09 | 1.08 | 8000 | 2.7 | 13.7 | 44.7 | Ball |
| MFB4015D1-VHB | 12 | 0.13 | 1.56 | 9000 | 2.95 | 17.7 | 47 | Ball |
| MFB4015D1-HVB | 12 | 0.15 | 1.8 | 11000 | 3.33 | 25.57 | 49.4 | Ball |

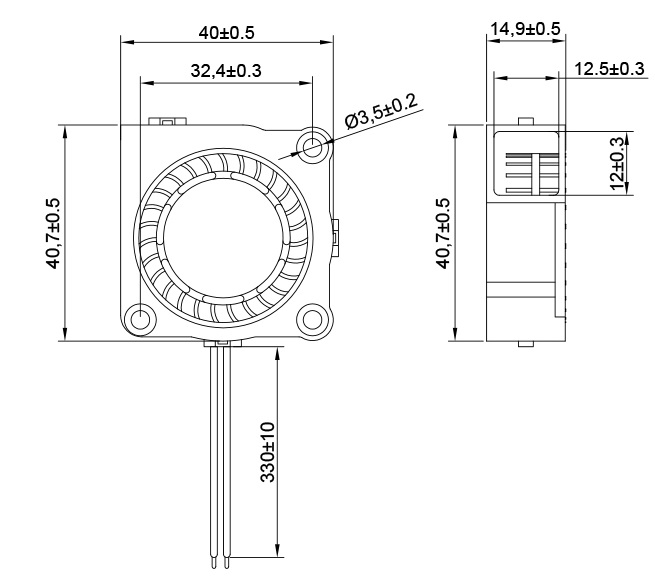

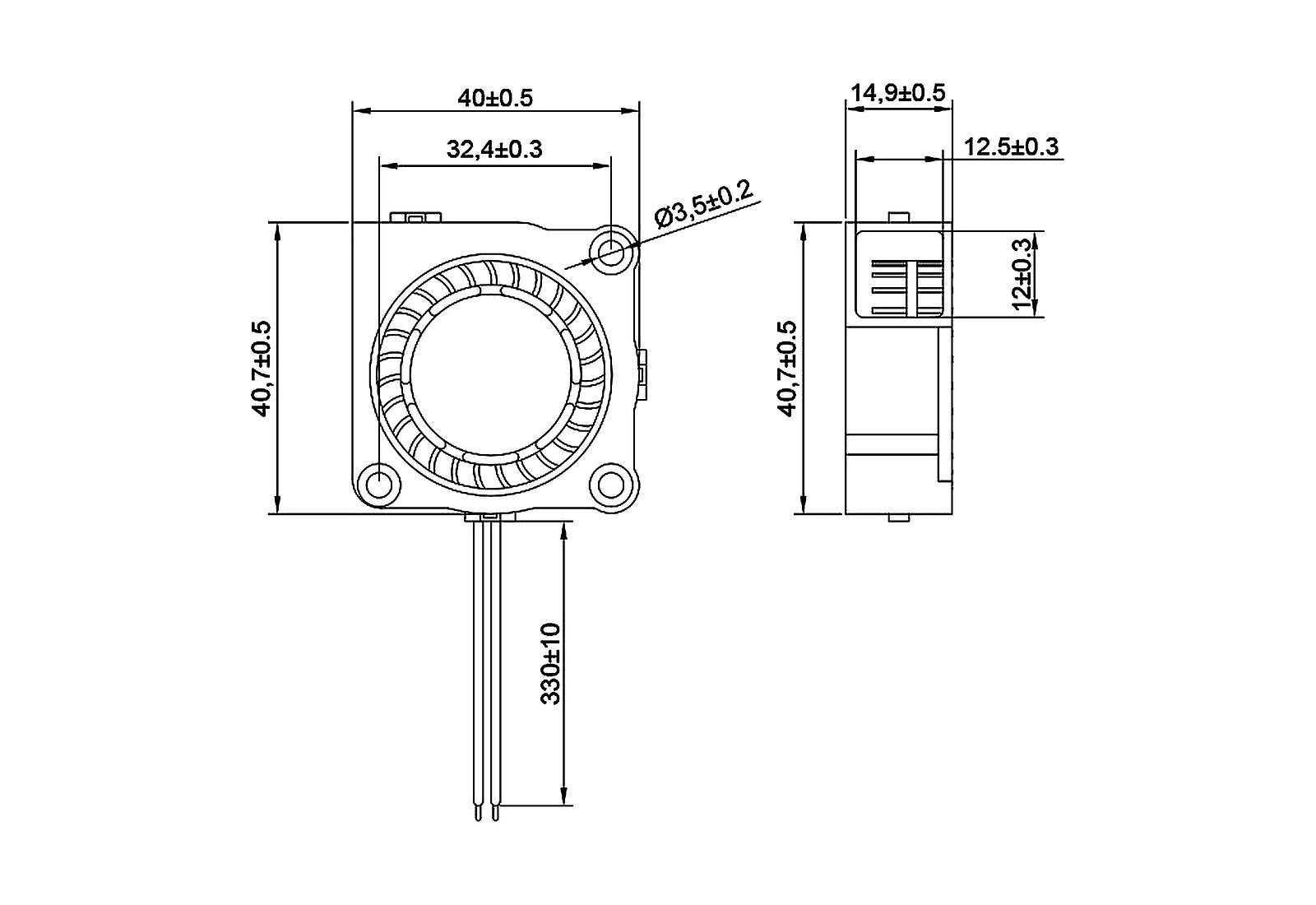

Dimension Drawing

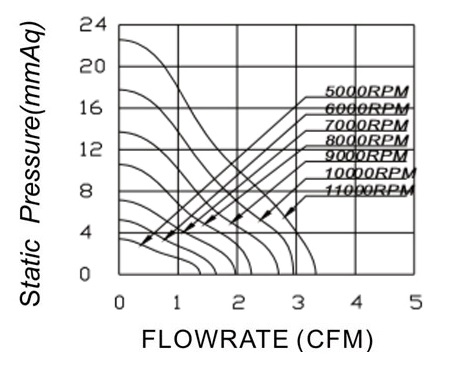

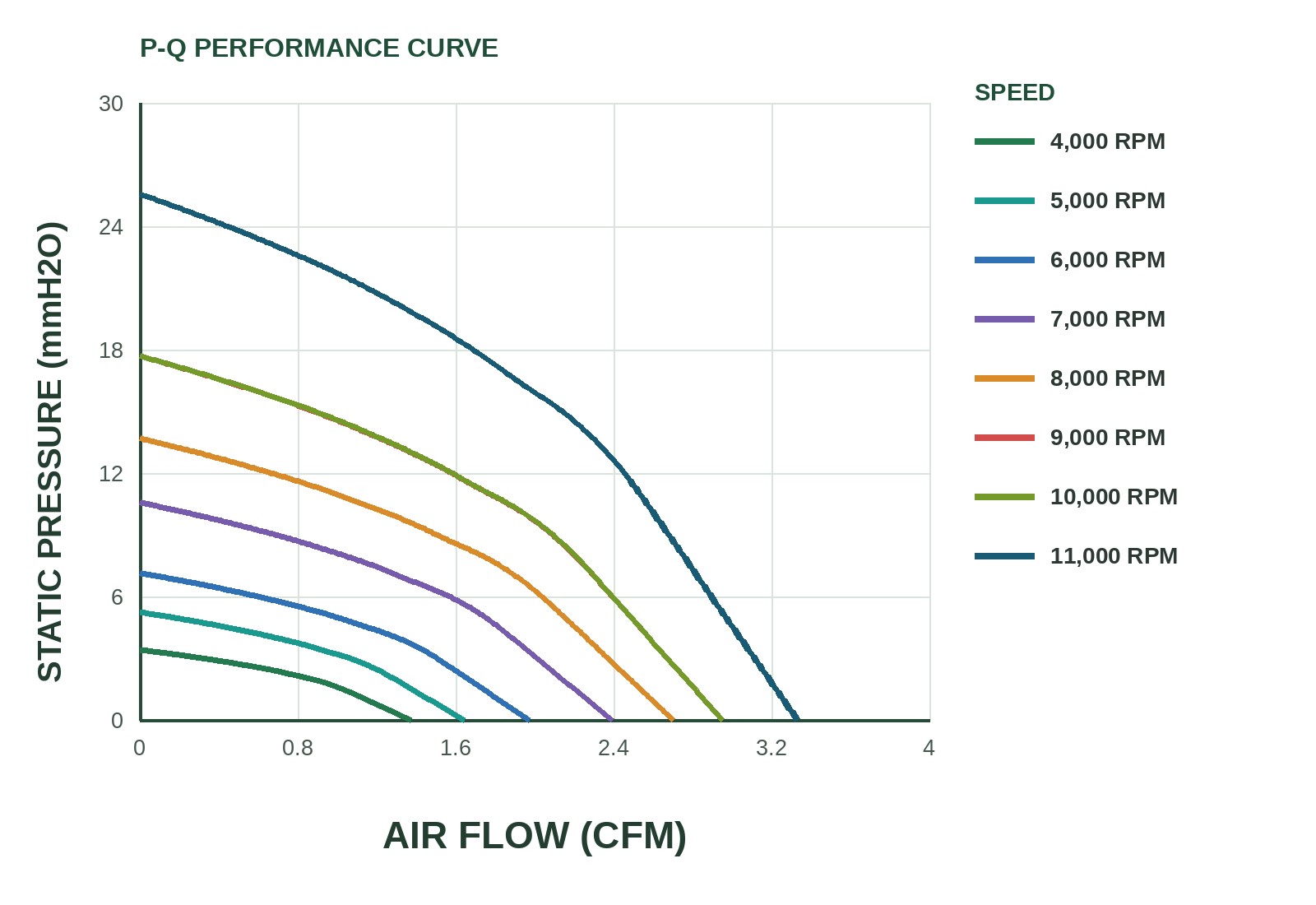

P&Q Curve
