DC Blower
MFB5010
50 x 50 x 10 m
Airflow
1.9~3.9 CFM
Speed
3500~6500 RPM
Noise
22.5~37.5 dB(A)
Product Specifications
| Size | 50 x 50 x 10 mm |
| Motor | Brushless DC |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFB5010D05-LS | 5 | 3.5 ~ 5.5 | 0.08 | 0.4 | 3500 | 1.87 | 3.18 | 22.5 |
| MFB5010D05-MS | 5 | 3.5 ~ 5.5 | 0.16 | 0.8 | 4500 | 2.4 | 5.64 | 28 |
| MFB5010D05-HS | 5 | 3.5 ~ 5.5 | 0.24 | 1.2 | 5500 | 3.04 | 9.47 | 32.5 |
| MFB5010D05-HHS | 5 | 3.5 ~ 5.5 | 0.32 | 1.6 | 6500 | 3.88 | 13.43 | 37.5 |
| MFB5010D1-LB | 12 | 7 ~ 13.8 | 0.04 | 0.48 | 3500 | 1.87 | 3.18 | 22.5 |
| MFB5010D1-MB | 12 | 7 ~ 13.8 | 0.06 | 0.8 | 4500 | 2.4 | 5.64 | 28 |
| MFB5010D1-HB | 12 | 7 ~ 13.8 | 0.12 | 1.44 | 5500 | 3.04 | 9.47 | 32.5 |
| MFB5010D1-HHB | 12 | 7 ~ 13.8 | 0.14 | 1.68 | 6500 | 3.88 | 13.43 | 37.5 |

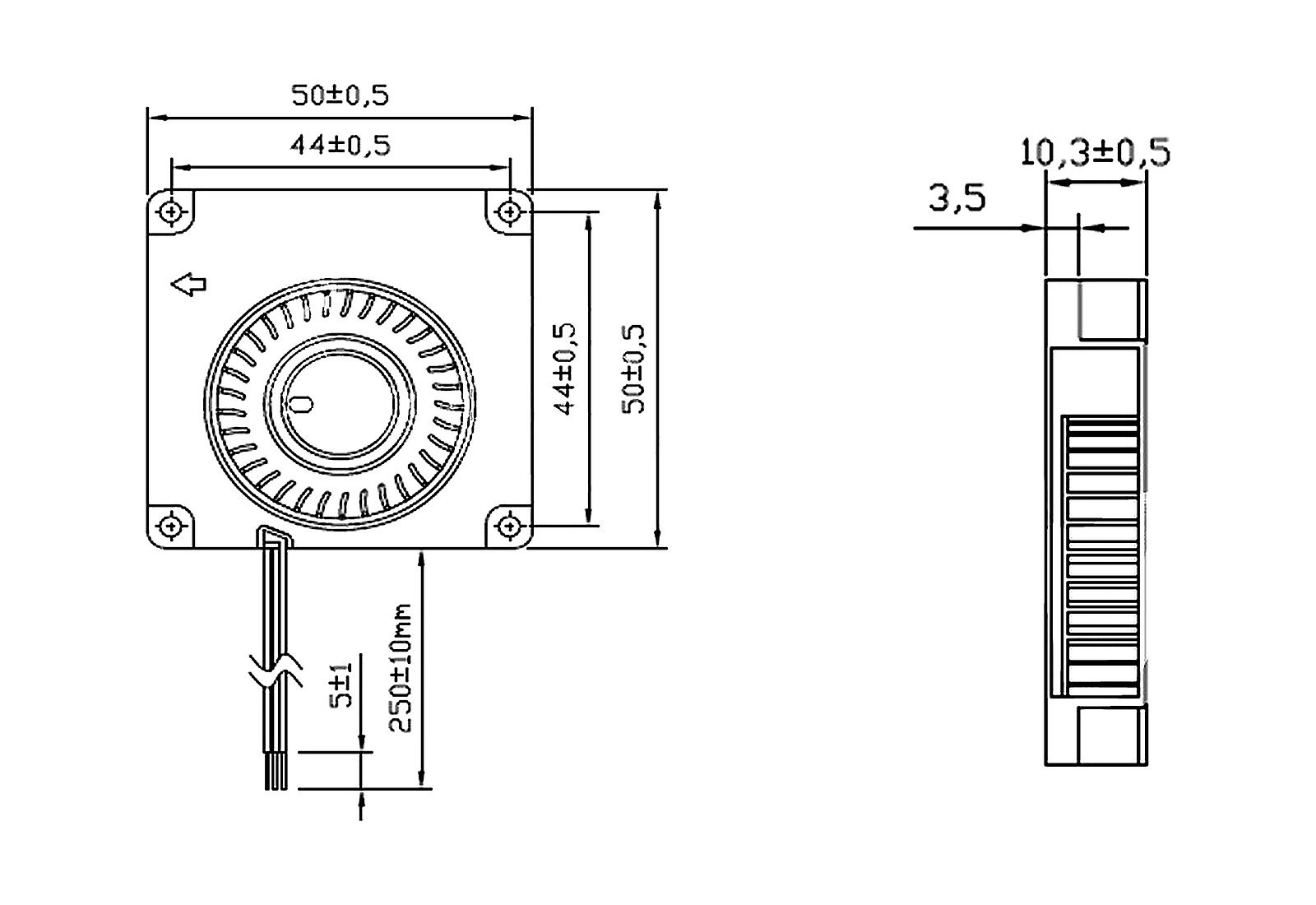

Dimension Drawing

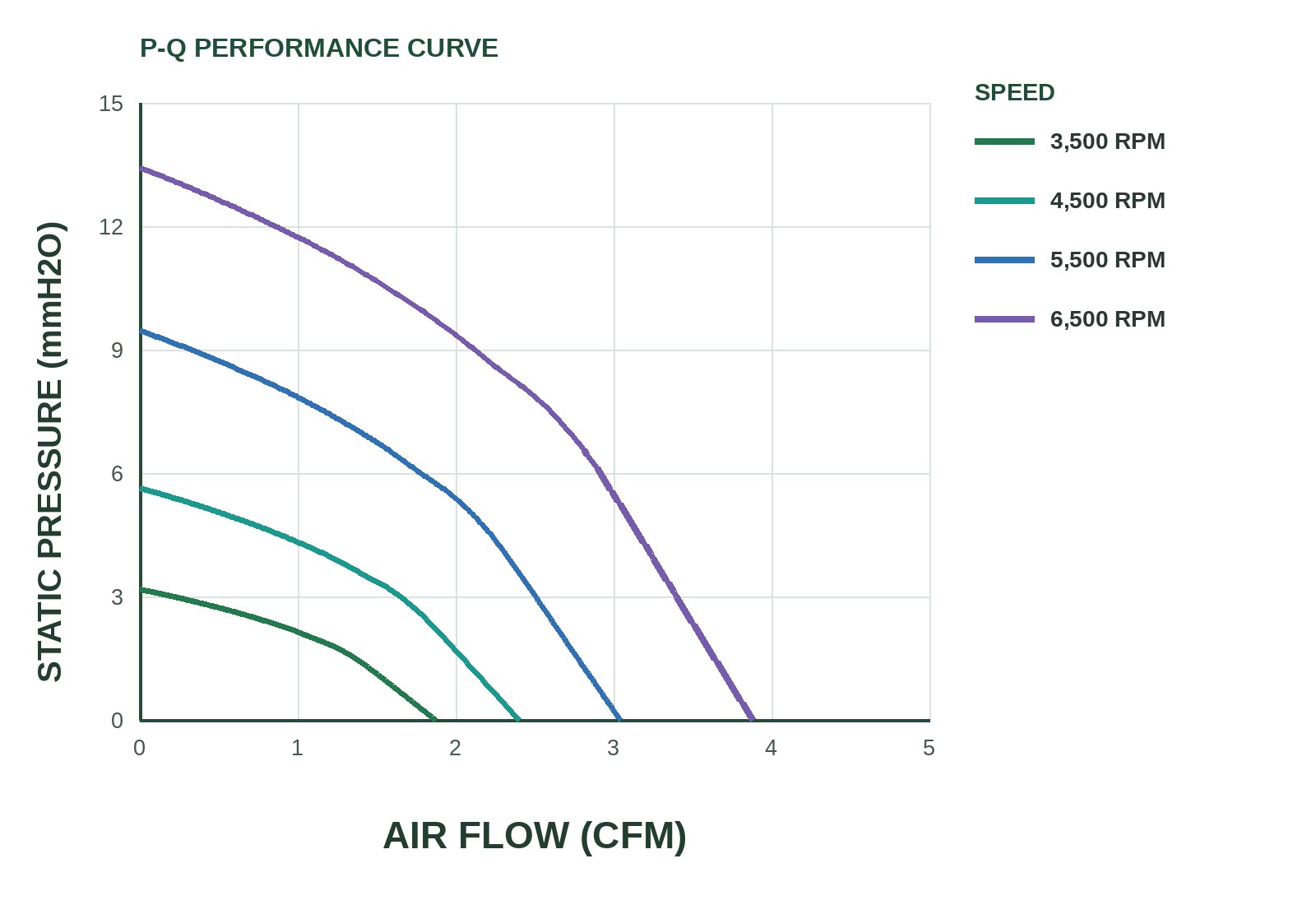

P&Q Curve
