DC Blower
MFB5015
50 x 50 x 15 m
Airflow
2.8~4.7 CFM
Speed
4000~6500 RPM
Noise
34.3~46.3 dB(A)
Product Specifications
| Size | 50 x 50 x 15 mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFB5015D05-LS | 5 | 0.12 | 0.6 | 4000 | 2.81 | 7.56 | 34.3 | Sleeve |
| MFB5015D05-MS | 5 | 0.17 | 0.84 | 4500 | 3.15 | 9.69 | 37.1 | Sleeve |
| MFB5015D05-HS | 5 | 0.22 | 1.1 | 5000 | 3.54 | 12.57 | 39.6 | Sleeve |
| MFB5015D05-HHS | 5 | 0.26 | 1.3 | 5500 | 3.96 | 16.12 | 42.5 | Sleeve |
| MFB5015D05-VHS | 5 | 0.39 | 1.95 | 6000 | 4.23 | 19.38 | 44.3 | Sleeve |
| MFB5015D05-HVS | 5 | 0.4 | 2.45 | 6500 | 4.71 | 23.98 | 46.3 | Sleeve |
| MFB5015D1-LS | 12 | 0.05 | 0.6 | 4000 | 2.81 | 7.56 | 34.3 | Sleeve |
| MFB5015D1-MB | 12 | 0.07 | 0.84 | 4500 | 3.15 | 9.69 | 37.1 | Ball |
| MFB5015D1-HB | 12 | 0.09 | 1.1 | 5000 | 3.54 | 12.57 | 39.6 | Ball |
| MFB5015D1-HHB | 12 | 0.12 | 1.4 | 5500 | 3.96 | 16.12 | 42.5 | Ball |
| MFB5015D1-VHB | 12 | 0.13 | 2.5 | 6000 | 4.23 | 19.38 | 44.3 | Ball |
| MFB5015D1-HVB | 12 | 0.24 | 2.88 | 6500 | 4.71 | 23.98 | 46.3 | Ball |

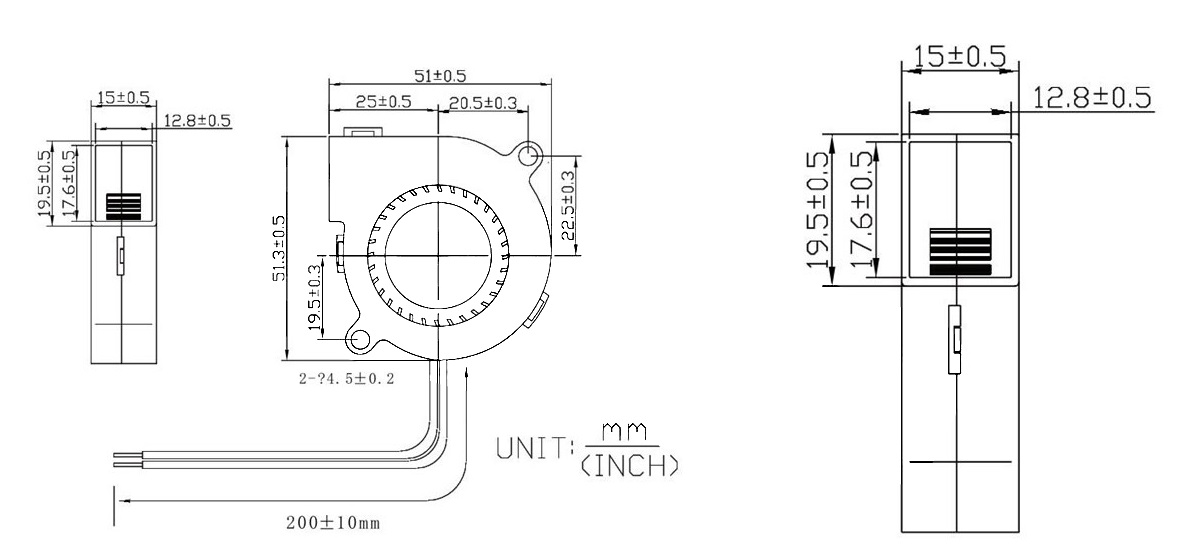

Dimension Drawing
P&Q Curve
