DC Blower
MFB6015
60 x 60 x 15 m
Airflow
2.2~4.5 CFM
Speed
2500~5000 RPM
Noise
24.4~43.5 dB(A)
Product Specifications
| Size | 60 x 60 x 15 m |
| Motor | Brushless DC |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFB6015D1-HB | 12 | 7 ~ 13.8 | 0.06 | 0.7 | 3500 | 3.16 | 7.13 | 33.6 |
| MFB6015D1-HHB | 12 | 7 ~ 13.8 | 0.08 | 1 | 4000 | 3.67 | 9.72 | 36.9 |
| MFB6015D1-HVB | 12 | 7 ~ 13.8 | 0.13 | 1.6 | 5000 | 4.54 | 16.62 | 43.5 |
| MFB6015D1-LB | 12 | 7 ~ 13.8 | 0.02 | 0.2 | 2500 | 2.24 | 3.31 | 24.4 |
| MFB6015D1-MB | 12 | 7 ~ 13.8 | 0.04 | 0.4 | 3000 | 2.78 | 5.12 | 29.5 |
| MFB6015D1-VHB | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 4500 | 4.13 | 12.7 | 40.5 |
| MFB6015D2-HB | 24 | 18 ~ 26.5 | 0.03 | 0.7 | 3500 | 3.16 | 7.13 | 33.6 |
| MFB6015D2-HHB | 24 | 18 ~ 26.5 | 0.04 | 1 | 4000 | 3.67 | 9.72 | 36.9 |
| MFB6015D2-HVB | 24 | 18 ~ 26.5 | 0.07 | 1.6 | 5000 | 4.54 | 16.62 | 43.5 |
| MFB6015D2-LB | 24 | 18 ~ 26.5 | 0.01 | 0.2 | 2500 | 2.24 | 3.31 | 24.4 |
| MFB6015D2-MB | 24 | 18 ~ 26.5 | 0.02 | 0.48 | 3000 | 2.78 | 5.12 | 29.5 |
| MFB6015D2-VHB | 24 | 18 ~ 26.5 | 0.05 | 1.2 | 4500 | 4.13 | 12.7 | 40.5 |

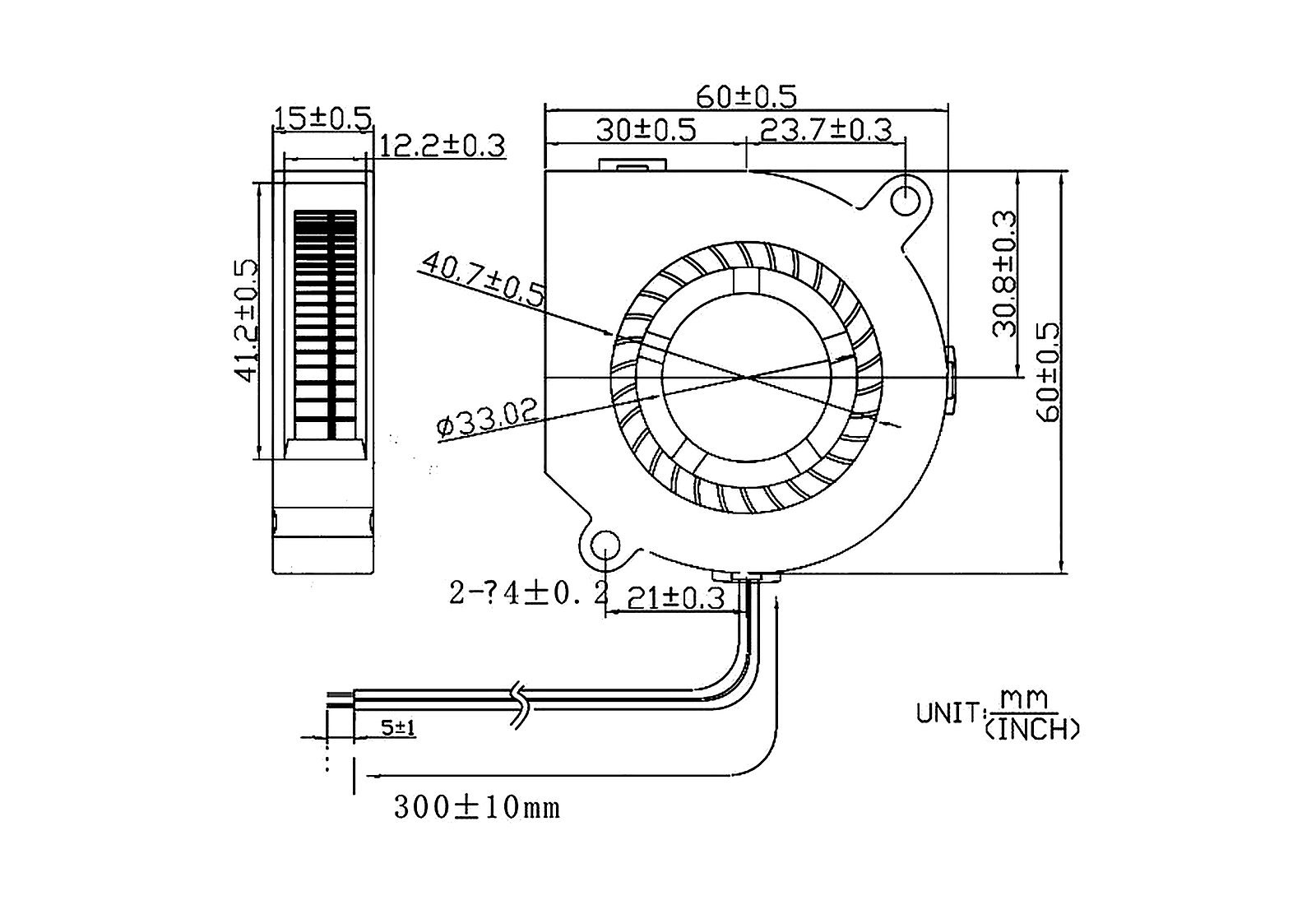

Dimension Drawing

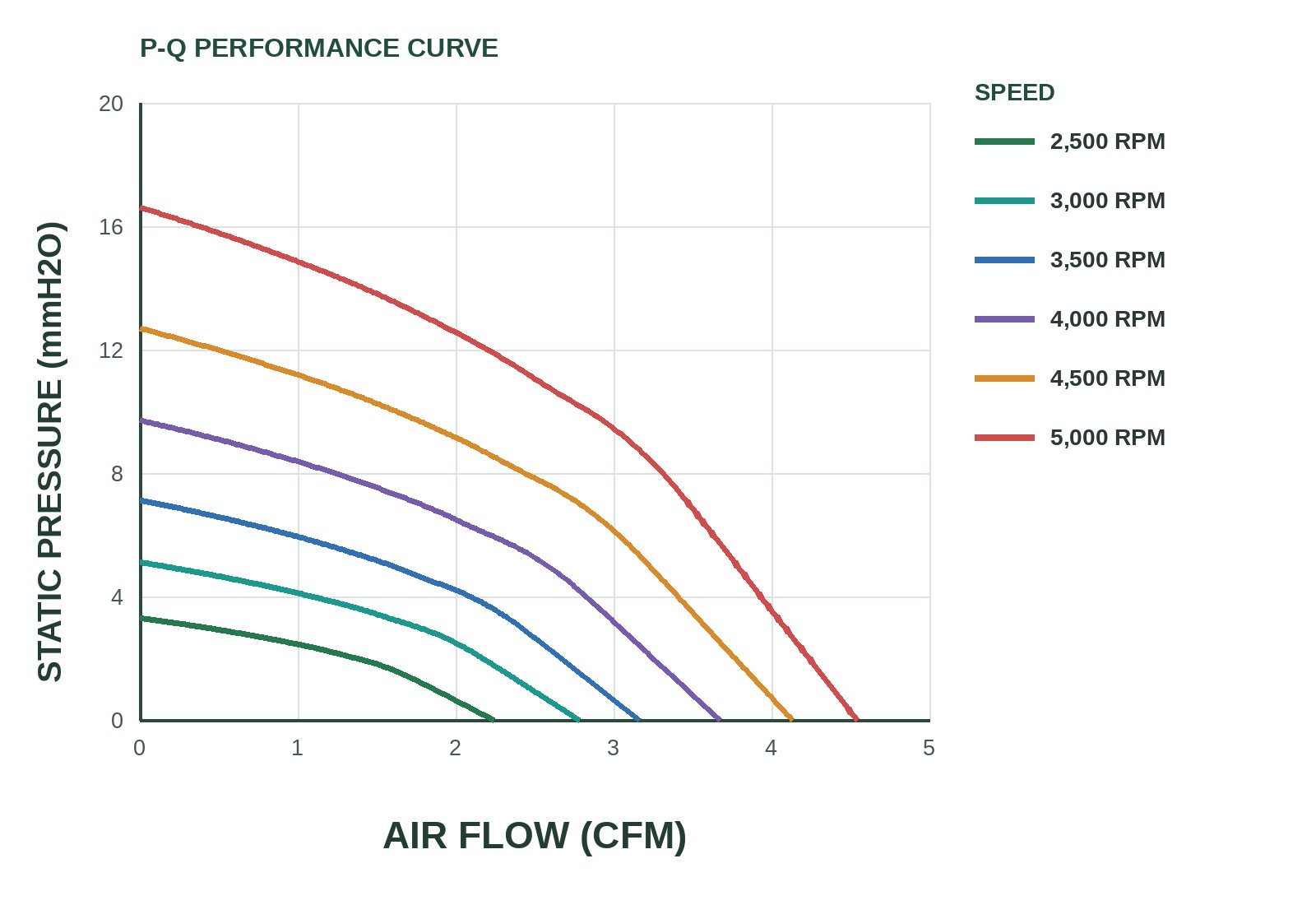

P&Q Curve
