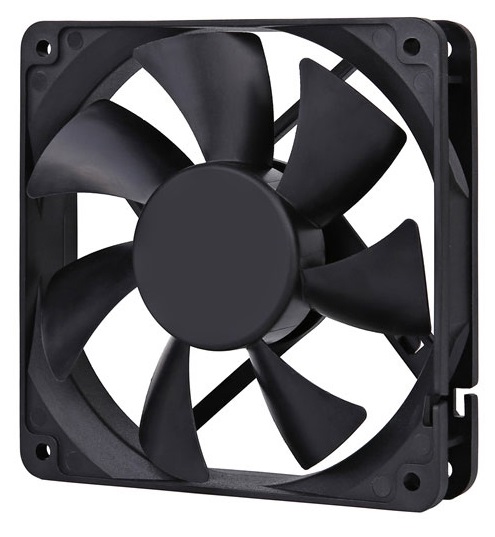

EC Fan
MFE12025
: 120x 120 x 25mm
Airflow
54.2~95.1 CFM
Speed
2000~3500 RPM
Noise
33.3~50.6 dB(A)
Product Specifications
| Size | : 120x 120 x 25mm |
| Voltage | AC 100~277V |
| Motor | EC (Electronically Commutated) |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|
| MFE12025-HB | 220 | 200 ~ 240 | 3.2 | 3000 | 82.86 | 5.92 | 46.1 |
| MFE12025-HHB | 220 | 200 ~ 240 | 6.4 | 3500 | 95.13 | 7.56 | 50.6 |
| MFE12025-LB | 220 | 200 ~ 240 | 3.2 | 2000 | 54.19 | 2.81 | 33.3 |
| MFE12025-MB | 220 | 200 ~ 240 | 3.2 | 2500 | 67.49 | 4.25 | 41.3 |

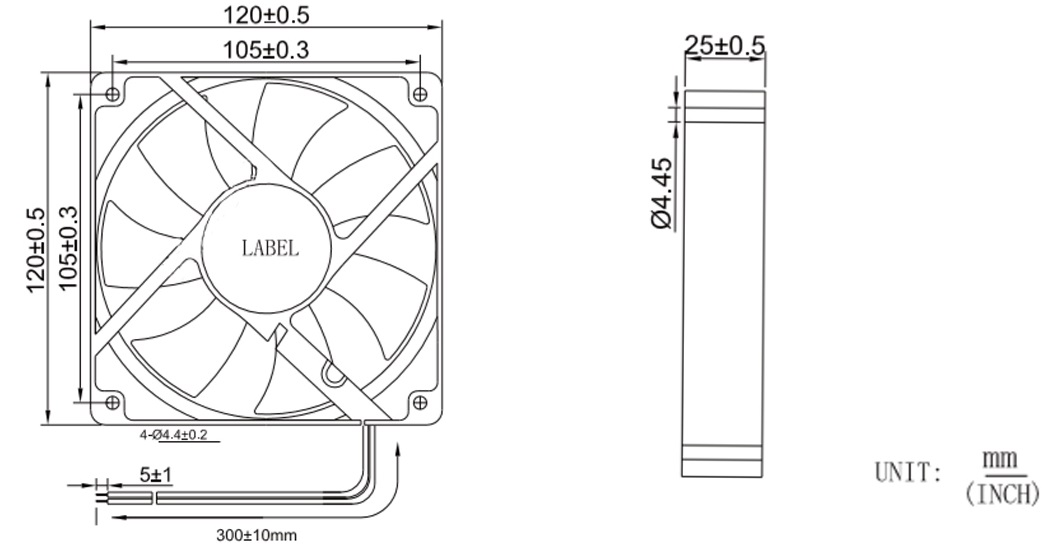

Dimension Drawing

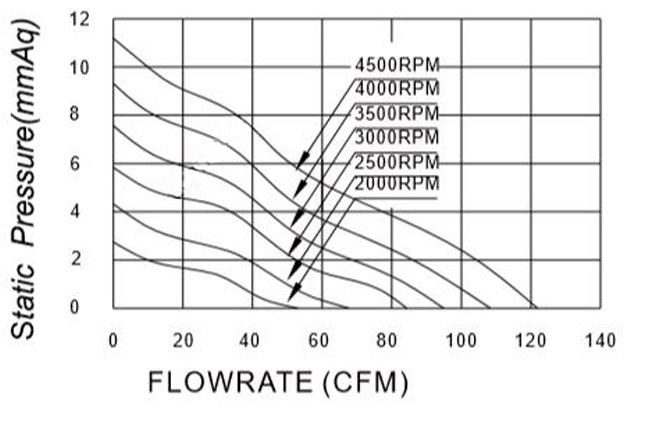

P&Q Curve
