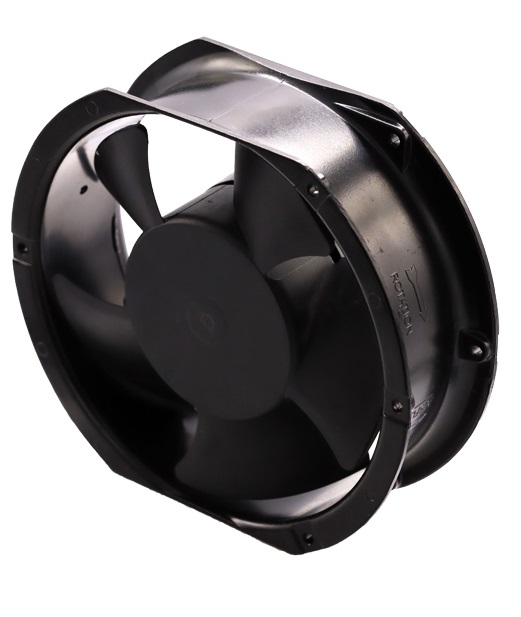

EC Fan
MFE17251
: 172x 150 x 51mm
Airflow
172.21~283 CFM
Speed
2500~4000 RPM
Noise
56.1~65.5 dB(A)
Product Specifications
| Size | : 172x 150 x 51mm |
| Voltage | AC 100~277V |
| Motor | EC (Electronically Commutated) |
| Frame | aluminum |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|
| MFE17251-LB | 220 | 200 ~ 240 | 22 | 2500 | 172.21 | 10.92 | 56.1 |
| MFE17251-MB | 220 | 200 ~ 240 | 22 | 3000 | 209.4 | 15.33 | 58.3 |
| MFE17251-HB | 220 | 200 ~ 240 | 26.4 | 3500 | 248 | 21.33 | 62.5 |
| MFE17251-HHB | 220 | 200 ~ 240 | 32 | 4000 | 283 | 27.36 | 65.5 |

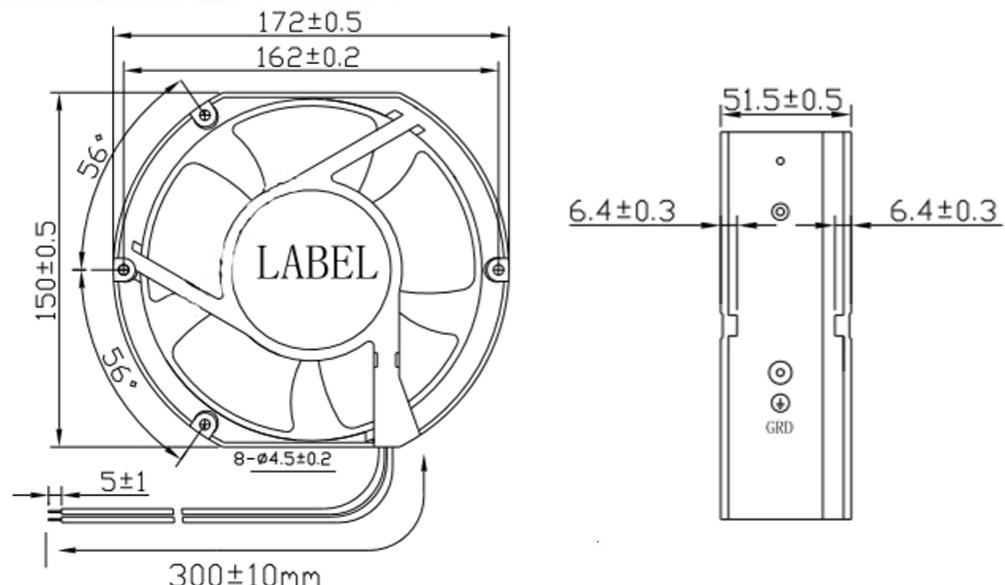

Dimension Drawing

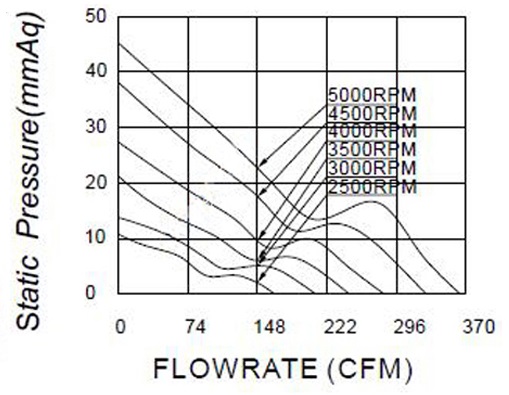

P&Q Curve
