DC Centrifugal Fan
MFL25093
Ø250x93mm
DC centrifugal fan engineered for applications requiring higher static pressure and directed airflow. Features efficient backward-curved impeller design with low noise operation.
Airflow
N/A
Speed
N/A
Noise
N/A
Product Specifications
| Fan Type | DC Centrifugal Fan |
|---|---|
| Rated Voltage | 12 VDC / 24 VDC / 48 VDC |
| Speed | 1500 ~ 3100 RPM |
| Max. Airflow | 424.0 ~ 876.2 CFM |
| Max. Static Pressure | 40.6 ~ 83.9 mmH₂O |
| Noise Level | 42.0 ~ 86.8 dB-A |
| Bearing | Ball Bearing |
| Frame Material | Aluminum |
| Certifications | CE, UL, ETL, RoHS |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFL25093D1-L | 24 | 18 ~ 26.5 | 4.5 | 108 | 1500 | 424 | 40.6 | 42 |
| MFL25093D1-M | 24 | 18 ~ 26.5 | 5.6 | 134.4 | 2000 | 565.3 | 54.1 | 56 |
| MFL25093D1-H | 24 | 18 ~ 26.5 | 7.2 | 172.8 | 3100 | 876.2 | 83.9 | 86.8 |
| MFL25093D2-L | 48 | 36 ~ 54 | 2.2 | 105.6 | 1500 | 424 | 40.6 | 42 |
| MFL25093D2-M | 48 | 36 ~ 54 | 2.9 | 139.2 | 2000 | 565.3 | 54.1 | 56 |
| MFL25093D2-H | 48 | 36 ~ 54 | 3.9 | 187.2 | 3000 | 848 | 81.2 | 84 |
Full Specifications
| Model | MFL25093 |
| Dimensions | Ø250x93mm |
| Airflow | 1,500 ~ 3,100 RPM |
| Speed | 1,500 ~ 3,100 RPM |
| Noise Level | 424 ~ 876.2 CFM |
| Voltage | 12V / 24V / 48V DC |
| Bearing | Ball Bearing |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Dimension Drawing

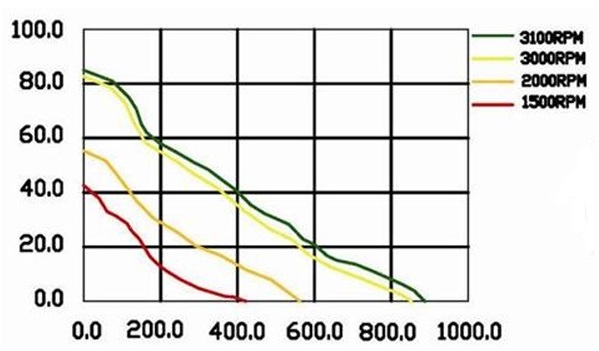

P&Q Curve
