DC 風扇
MFD4020
: 40 x 40 x 20mm
風量
5.19~24.8 CFM
轉速
5000~18000 RPM
噪音
20.9~57.7 dB(A)
產品規格
| 尺寸 | 40 x 40 x 20 mm |
| 電壓 | 5V / 12V / 24V DC |
| 馬達 | 無刷直流 |
| 框架 | 塑膠 PBT UL94V-0 |
| 扇葉 | 塑膠 PBT UL94V-0 |
| 軸承類型 | 滾珠軸承 / 含油軸承 |
| 工作溫度 | 滾珠軸承: -10 ~ 70°C / 含油軸承: 0 ~ 60°C |
| 預期壽命 | 滾珠軸承: 50,000 小時 (25°C) / 含油軸承: 30,000 小時 (25°C) |
型號與規格
| 型號 | 電壓 (V) | 電流 (A) | 功率 (W) | 轉速 (RPM) | 風量 (CFM) | 靜壓 (mmH₂O) | 噪音 (dB-A) | 軸承 |
|---|---|---|---|---|---|---|---|---|
| MFD4020D05-LB | 5 | 0.15 | 0.72 | 5000 | 5.19 | 2.62 | 20.9 | 滾珠 |
| MFD4020D05-LS | 5 | 0.15 | 0.72 | 5000 | 5.19 | 2.62 | 20.9 | 含油 |
| MFD4020BD05-LB | 5 | 0.07 | 0.36 | 5000 | 5.34 | 2.65 | 23.8 | 滾珠 |
| MFD4020BD05-LS | 5 | 0.07 | 0.36 | 5000 | 5.34 | 2.65 | 23.8 | 含油 |
| MFD4020D05-LMB | 5 | 0.17 | 0.84 | 6000 | 6.41 | 3.87 | 26.7 | 滾珠 |
| MFD4020D05-LMS | 5 | 0.17 | 0.84 | 6000 | 6.41 | 3.87 | 26.7 | 含油 |
| MFD4020BD05-LMB | 5 | 0.1 | 0.48 | 6000 | 6.74 | 4.07 | 29 | 滾珠 |
| MFD4020BD05-LMS | 5 | 0.1 | 0.48 | 6000 | 6.74 | 4.07 | 29 | 含油 |
| MFD4020D05-MB | 5 | 0.19 | 0.96 | 6500 | 6.87 | 4.6 | 29.1 | 滾珠 |
| MFD4020D05-MS | 5 | 0.19 | 0.96 | 6500 | 6.87 | 4.6 | 29.1 | 含油 |
| MFD4020BD05-MB | 5 | 0.12 | 0.6 | 6500 | 7.07 | 4.47 | 30.6 | 滾珠 |
| MFD4020BD05-MS | 5 | 0.12 | 0.6 | 6500 | 7.07 | 4.47 | 30.6 | 含油 |
| MFD4020D05-HB | 5 | 0.22 | 1.08 | 7500 | 7.9 | 5.78 | 32.7 | 滾珠 |
| MFD4020D05-HS | 5 | 0.22 | 1.08 | 7500 | 7.9 | 5.78 | 32.7 | 含油 |
| MFD4020BD05-HB | 5 | 0.22 | 1.08 | 7500 | 8.36 | 6.04 | 34.4 | 滾珠 |
| MFD4020BD05-HS | 5 | 0.22 | 1.08 | 7500 | 8.36 | 6.04 | 34.4 | 含油 |
| MFD4020D05-HHB | 5 | 0.24 | 1.2 | 8500 | 8.77 | 7.52 | 37.2 | 滾珠 |
| MFD4020D05-HHS | 5 | 0.24 | 1.2 | 8500 | 8.77 | 7.52 | 37.2 | 含油 |
| MFD4020BD05-HHB | 5 | 0.24 | 1.2 | 8500 | 8.94 | 6.76 | 36.4 | 滾珠 |
| MFD4020BD05-HHS | 5 | 0.24 | 1.2 | 8500 | 8.94 | 6.76 | 36.4 | 含油 |
| MFD4020D1-LB | 12 | 0.06 | 0.72 | 5000 | 5.19 | 2.62 | 20.9 | 滾珠 |
| MFD4020D1-LS | 12 | 0.06 | 0.72 | 5000 | 5.19 | 2.62 | 20.9 | 含油 |
| MFD4020BD1-LB | 12 | 0.03 | 0.36 | 5000 | 5.34 | 2.65 | 23.8 | 滾珠 |
| MFD4020BD1-LS | 12 | 0.03 | 0.36 | 5000 | 5.34 | 2.65 | 23.8 | 含油 |
| MFD4020D1-LMB | 12 | 0.07 | 0.84 | 6000 | 6.41 | 3.87 | 26.7 | 滾珠 |
| MFD4020D1-LMS | 12 | 0.07 | 0.84 | 6000 | 6.41 | 3.87 | 26.7 | 含油 |
| MFD4020BD1-LMB | 12 | 0.04 | 0.48 | 6000 | 6.74 | 4.07 | 29 | 滾珠 |
| MFD4020BD1-LMS | 12 | 0.04 | 0.48 | 6000 | 6.74 | 4.07 | 29 | 含油 |
| MFD4020D1-MB | 12 | 0.08 | 0.96 | 6500 | 6.87 | 4.6 | 29.1 | 滾珠 |
| MFD4020D1-MS | 12 | 0.08 | 0.96 | 6500 | 6.87 | 4.6 | 29.1 | 含油 |
| MFD4020BD1-MB | 12 | 0.05 | 0.6 | 6500 | 7.07 | 4.47 | 30.6 | 滾珠 |
| MFD4020BD1-MS | 12 | 0.05 | 0.6 | 6500 | 7.07 | 4.47 | 30.6 | 含油 |
| MFD4020D1-HB | 12 | 0.09 | 1.08 | 7500 | 7.9 | 5.78 | 32.7 | 滾珠 |
| MFD4020D1-HS | 12 | 0.09 | 10.8 | 7500 | 7.9 | 5.78 | 32.7 | 含油 |
| MFD4020BD1-HB | 12 | 0.09 | 1.08 | 7500 | 8.36 | 6.04 | 34.4 | 滾珠 |
| MFD4020BD1-HS | 12 | 0.09 | 1.08 | 7500 | 8.36 | 6.04 | 34.4 | 含油 |
| MFD4020D1-HHB | 12 | 0.1 | 1.2 | 8500 | 8.77 | 7.52 | 37.2 | 滾珠 |
| MFD4020D1-HHS | 12 | 0.1 | 1.2 | 8500 | 8.77 | 7.52 | 37.2 | 含油 |
| MFD4020BD1-HHB | 12 | 0.1 | 1.2 | 8500 | 8.94 | 6.76 | 36.4 | 滾珠 |
| MFD4020BD1-HHS | 12 | 0.1 | 1.2 | 8500 | 8.94 | 6.76 | 36.4 | 含油 |
| MFD4020CD1-LB | 12 | 0.43 | 5.16 | 12000 | 16.6 | 20.7 | 53.2 | 滾珠 |
| MFD4020CD1-LMB | 12 | 0.55 | 6.6 | 14000 | 19.6 | 27.1 | 53.5 | 滾珠 |
| MFD4020CD1-MB | 12 | 0.67 | 8.04 | 16000 | 22.2 | 35 | 55.6 | 滾珠 |
| MFD4020CD1-HB | 12 | 0.85 | 10.2 | 18000 | 24.8 | 43.8 | 57.7 | 滾珠 |
| MFD4020CD1-HHB | 12 | 1.3 | 15.6 | 20000 | 29.5 | 59.2 | 58.1 | 滾珠 |
| MFD4020D2-MB | 24 | 0.4 | 0.96 | 6500 | 6.87 | 4.6 | 29.1 | 滾珠 |
| MFD4020D2-MS | 24 | 0.4 | 0.96 | 6500 | 6.87 | 4.6 | 29.1 | 含油 |
| MFD4020BD2-MB | 24 | 0.04 | 0.96 | 6500 | 7.07 | 4.47 | 30.6 | 滾珠 |
| MFD4020BD2-MS | 24 | 0.04 | 0.96 | 6500 | 7.07 | 4.47 | 30.6 | 含油 |
| MFD4020D2-HB | 24 | 0.45 | 1.08 | 7500 | 7.9 | 5.78 | 32.7 | 滾珠 |
| MFD4020D2-HS | 24 | 0.45 | 1.08 | 7500 | 7.9 | 5.78 | 32.7 | 含油 |
| MFD4020BD2-HB | 24 | 0.04 | 1.08 | 7500 | 8.36 | 6.04 | 34.4 | 滾珠 |
| MFD4020BD2-HS | 24 | 0.04 | 1.08 | 7500 | 8.36 | 6.04 | 34.4 | 含油 |
| MFD4020D2-HHB | 24 | 0.05 | 1.2 | 8500 | 8.77 | 7.52 | 37.2 | 滾珠 |
| MFD4020D2-HHS | 24 | 0.05 | 1.2 | 8500 | 8.77 | 7.52 | 37.2 | 含油 |
| MFD4020BD2-HHB | 24 | 0.05 | 1.2 | 8500 | 8.94 | 6.76 | 36.4 | 滾珠 |
| MFD4020BD2-HHS | 24 | 0.05 | 1.2 | 8500 | 8.94 | 6.76 | 36.4 | 含油 |
| MFD4020CD2-VHB | 24 | 0.75 | 16.8 | 20000 | 29.5 | 59.2 | 58.1 | 滾珠 |

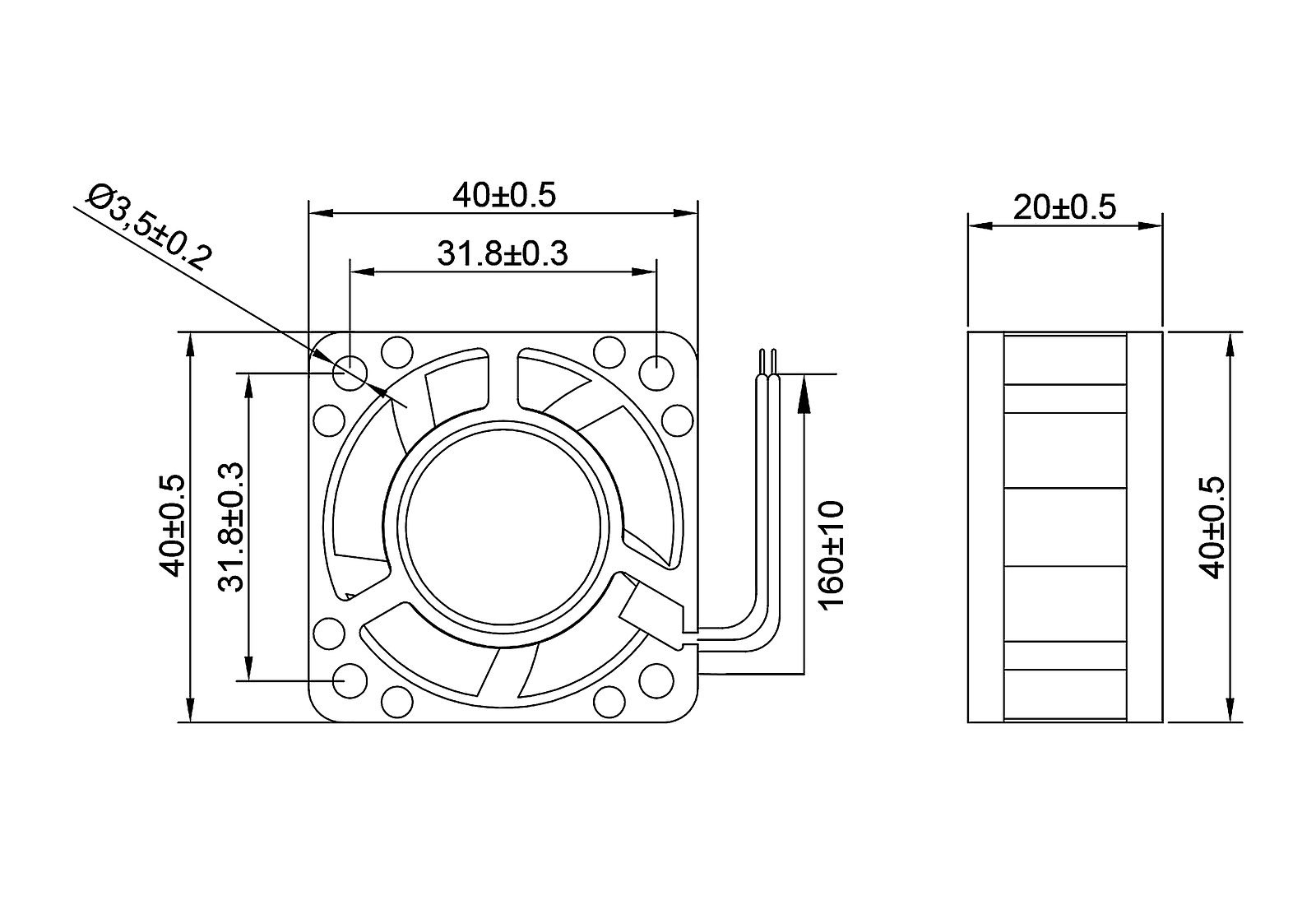

尺寸圖

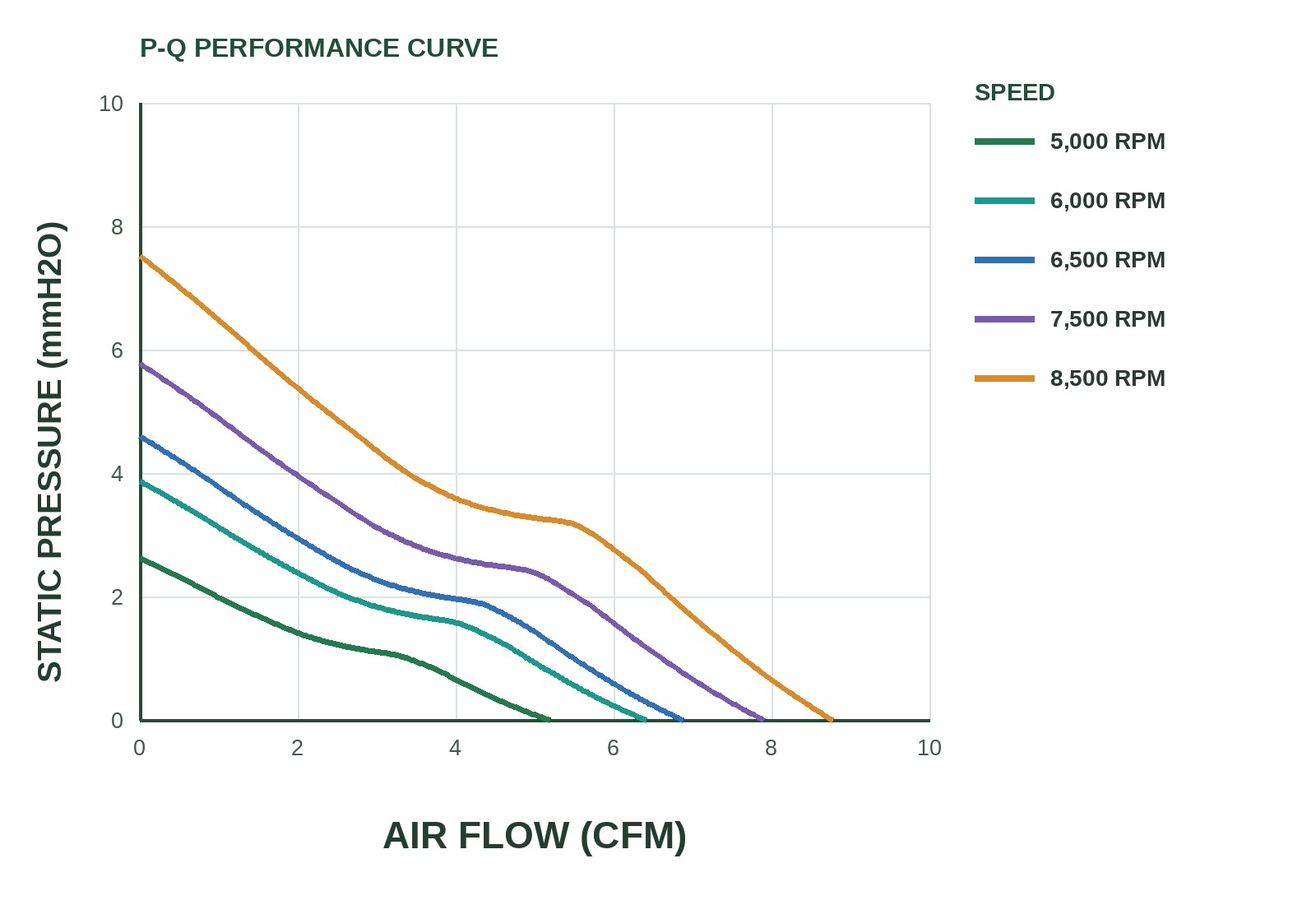

P&Q 曲線圖
