30x30x05mm 鼓風機

型號:MFB3005

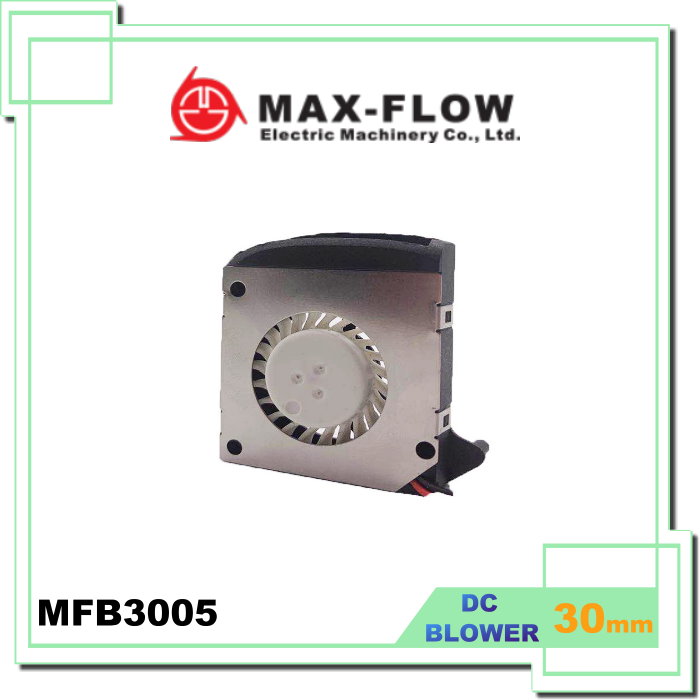

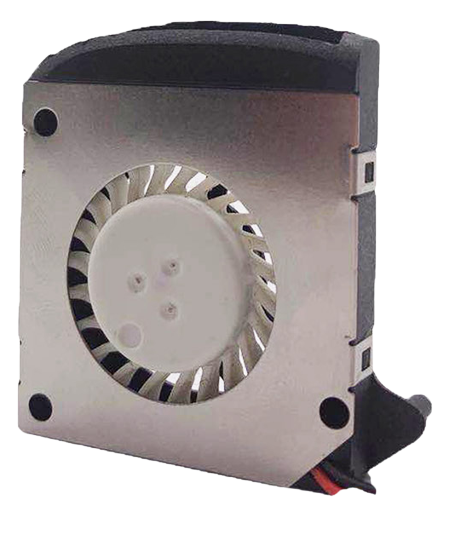

3CM 微型鼓風機





MFB3005

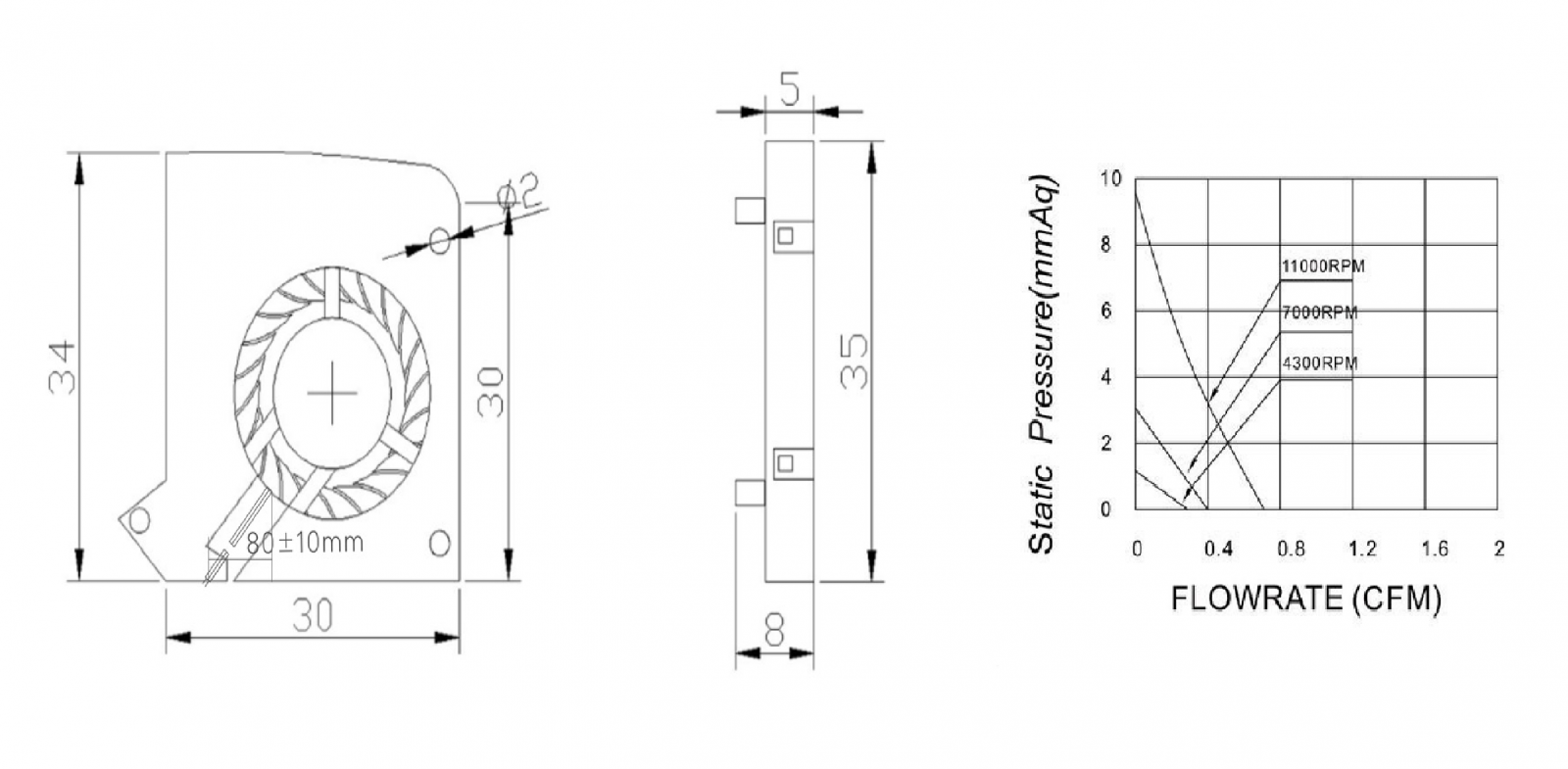

Size : 30 x 30 x 5 mm
Bearing system: Sleeve ,HY
Frame: PBT UL94V-0
Impeller:Plastic PBT UL94V-0
Operating Temp
Sleeve: -10 ~ 80°C
Life Expectancy
Sleeve : 25,000 hours at 25°C
Weight: 6 g

















MODEL

Rated

Voltge

Operating

Voltage Range

Rated

Current

Rated

Input Power

Speed

Maximun

Air Flow

Maximun

Air Pressure

Noise

PART NO.

VDC

VDC

Amp

Watt

R.P.M

m3/min

CFM

mmH2O

INH2O

DB-A

MFB3005D05-H

5

3.6 ~ 6

0.07

0.35

11000

0.021

0.73

9.57

0.376

28.6

MFB3005D05-M

5

3.6 ~ 6

0.05

0.165

7000

0.011

0.39

3.05

0.12

<18

MFB3005D05-L

5

3.6 ~ 6

0.03

0.06

4300

0.007

0.26

1.16

0.046

<18
