AC Axial Fan
MF25090
Ø254 x 89 mm (Ø10 x 3.50 inch)
Airflow
480~860 CFM
Speed
1600~3000 RPM
Noise
48~84 dB(A)
Product Specifications
| Size | Ø250 x 89mm (Ø10 x 3.49 inch.) |
| Voltage | 110V / 220V AC, 50/60Hz |
| Motor | Shaded Pole |
| Frame | Aluminum Die-Cast |
| Impeller | PBT + 30% Fiber Glass. UL94V-0 |
| Bearing | Ball Bearing |
| Operating Temp. | Within -20 ~ 80°C |
| Life Expectancy | 50,000 hours at 60°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Frequency (Hz) | Current (A) | Input Power (W) | Speed (RPM) | Airflow (CFM) | Static Pressure (inch-H₂O) | Noise (dB-A) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| MF25090A1-LBAPL | 110/120 | 50/60 | 0.36/0.40 | 40/48 | 1600/1700 | 480/550 | 0.31/0.42 | 48/56 | 1780 |
| MF25090A1-HBAPL | 110/120 | 50/60 | 0.50 | 42 | 2700 | 820 | 0.795 | 78 | 1810 |
| MF25090A2-LBAPL | 220/240 | 50/60 | 0.16/0.22 | 40/52 | 1600/1700 | 480/550 | 0.31/0.42 | 48/56 | 1780 |
| MF25090A2-HBAPL | 220/240 | 50/60 | 0.43 | 70 | 3000 | 860 | 0.83 | 84 | 1810 |
Specifications subject to change without notice. Specifications are governed by the official approval sheet.
*The high-airflow ratings are transposed from 254 × 254 × 89 mm reference data; production data follows the MAX FLOW complete part-number approval sheet.

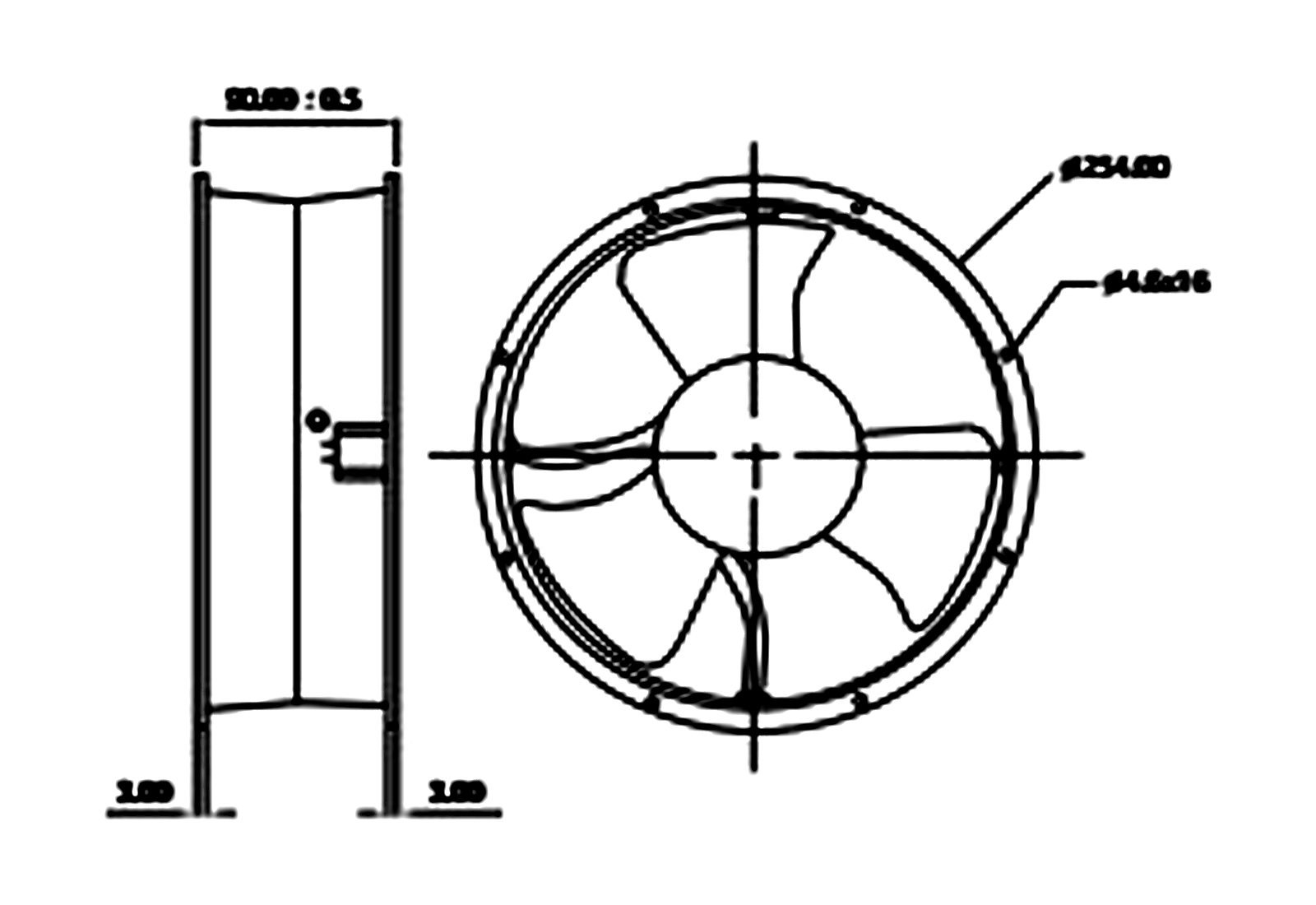

Dimension Drawing

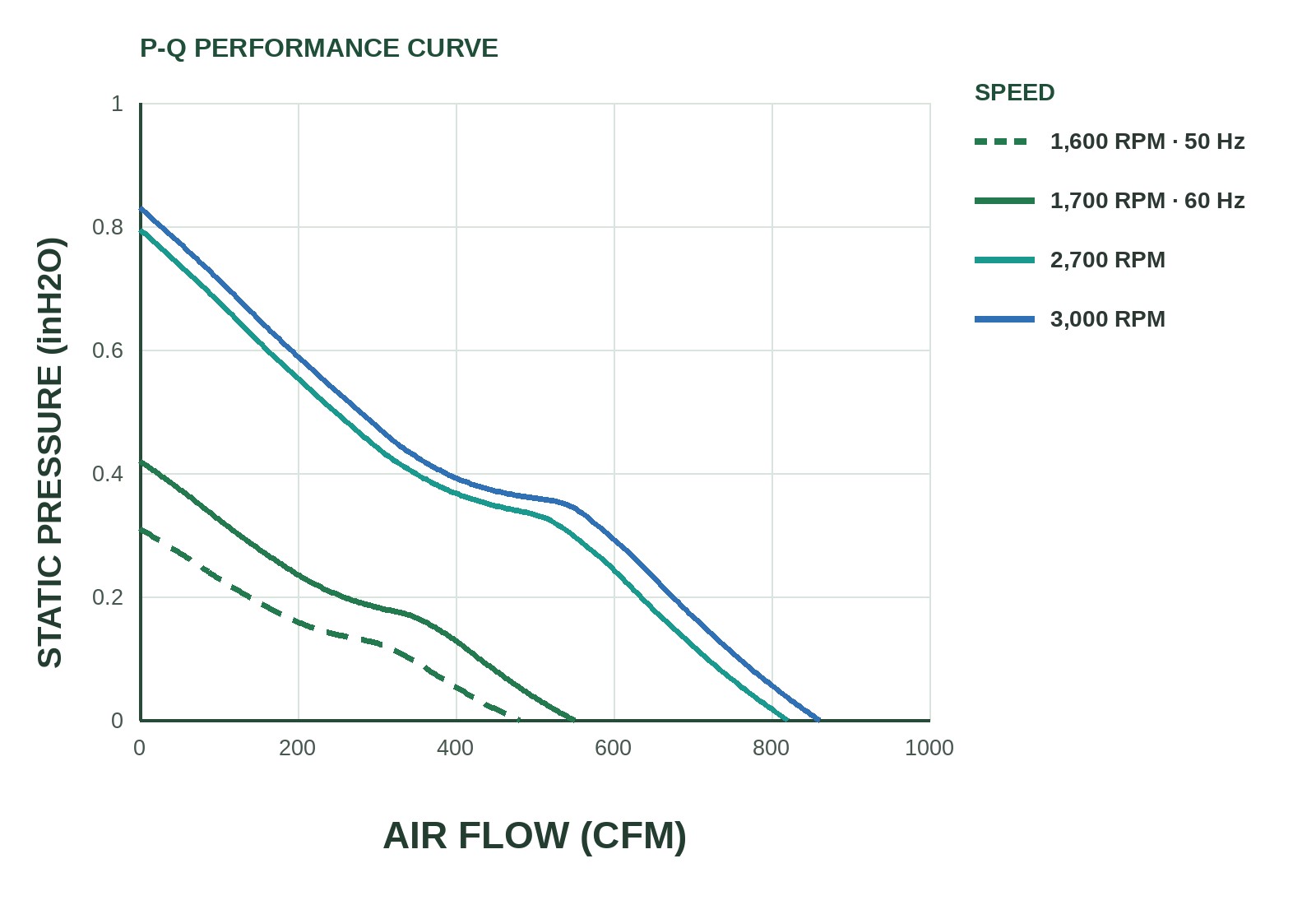

P&Q Curve
Part Number Code
MFSeries
120Frame
38Thickness
A1Voltage
HSpeed
BBearing
AFrame Material
PImpeller
TLead-out
IP55Protection
Example MF12038A1-HBAPT-IP55
From left to right: AC fan series, frame, thickness, single rated voltage, speed, bearing, frame material, impeller, lead-out and protection suffix. AC fans have no signal output option; available combinations follow the complete part-number approval sheet.
From left to right: AC fan series, frame, thickness, single rated voltage, speed, bearing, frame material, impeller, lead-out and protection suffix. AC fans have no signal output option; available combinations follow the complete part-number approval sheet.
MF
AC Axial Fan
120 / 38
120mm frame, 38mm thickness
Voltage
A1110 / 120 VAC
A2220 / 240 VAC
A3380 / 440 VAC
Speed
LLow speed
MMedium speed
HHigh speed
Bearing
BBall Bearing
SSleeve Bearing
A
Aluminum die-cast frame
P / A
PBT + 30% glass-fibre impeller / aluminum-magnesium alloy impeller
SQ
Identifies the square 172 × 172 frame, distinct from the 172 × 150 frame
T / L
Terminal connector / flying leads; the lead-out type follows the complete part number
-IP55
IP55 water-protected type (IPX7 also available)
Some models carry additional custom suffixes (lead length, connector type, ingress protection, etc.);
Please confirm the complete part number with our sales team before ordering.
