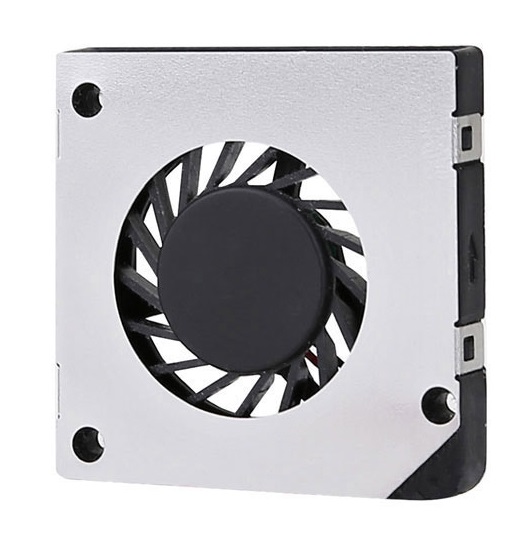

DC Blower
MFB3004
30 x 30 x 4 m
Airflow
0.3~0.7 CFM
Speed
4300~11000 RPM
Noise
18 dB(A)
Product Specifications
| Size | 30 x 30 x 4 m |
| Motor | Brushless DC |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFB3004D05-HS | 5 | 3.5 ~ 5.5 | 0.1 | 0.35 | 11000 | 0.73 | 9.57 | 18 |
| MFB3004D05-LS | 5 | 3.5 ~ 5.5 | 0.04 | 0.06 | 4300 | 0.26 | 1.16 | 18 |
| MFB3004D05-MS | 5 | 3.5 ~ 5.5 | 0.06 | 0.165 | 7000 | 0.39 | 3.05 | 18 |

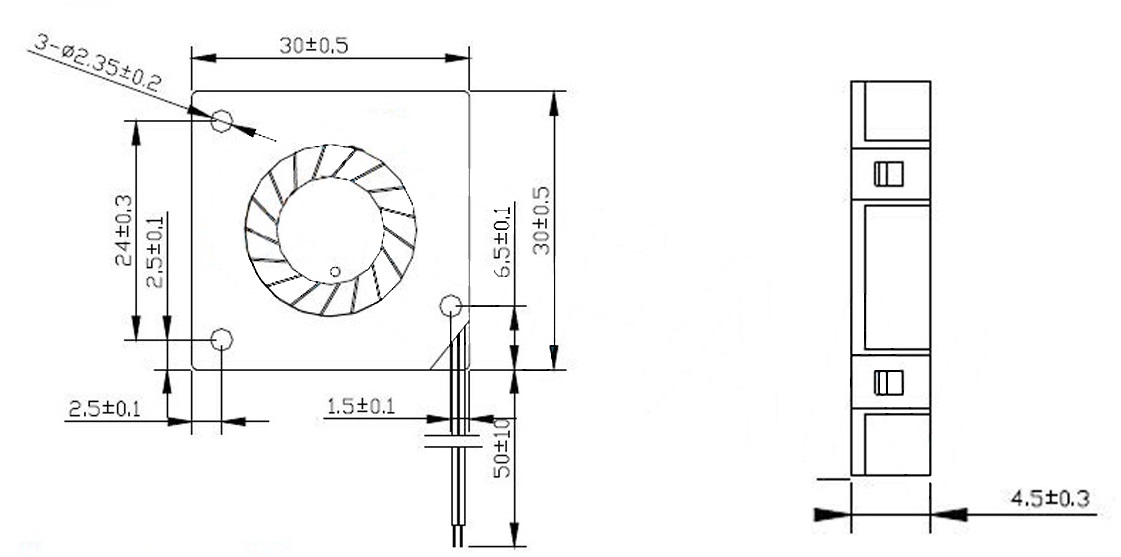

Dimension Drawing

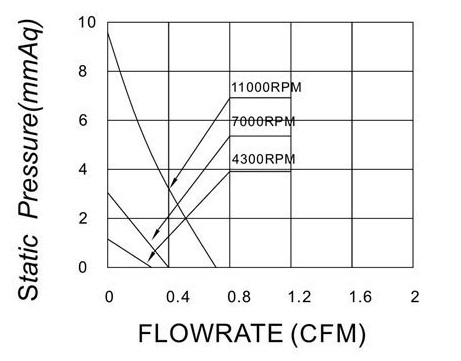

P&Q Curve
