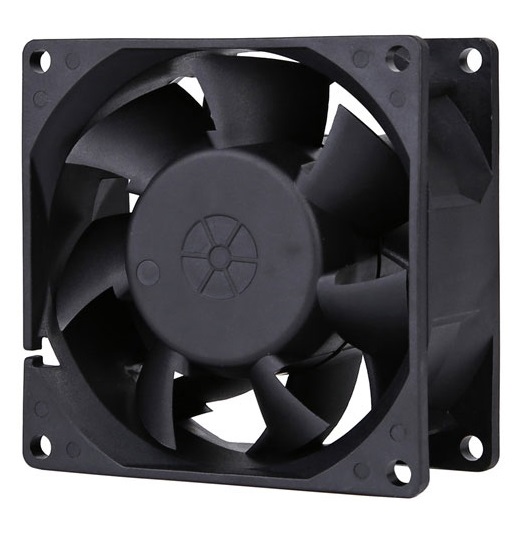

EC Fan
MFE8038
: 80x 80 x 38mm
Airflow
66.5~93.3 CFM
Speed
5000~7000 RPM
Noise
46.6~57.1 dB(A)
Product Specifications
| Size | : 80x 80 x 38mm |
| Voltage | AC 100~277V |
| Motor | EC (Electronically Commutated) |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|
| MFE8038-HB | 220 | 200 ~ 240 | 8.8 | 6500 | 85.32 | 20.49 | 54 |
| MFE8038-HHB | 220 | 200 ~ 240 | 8.8 | 7000 | 93.31 | 24.53 | 57.1 |
| MFE8038-LB | 220 | 200 ~ 240 | 6.6 | 5000 | 66.46 | 12.65 | 46.6 |
| MFE8038-MB | 220 | 200 ~ 240 | 6.6 | 6000 | 79.11 | 18.22 | 51.4 |

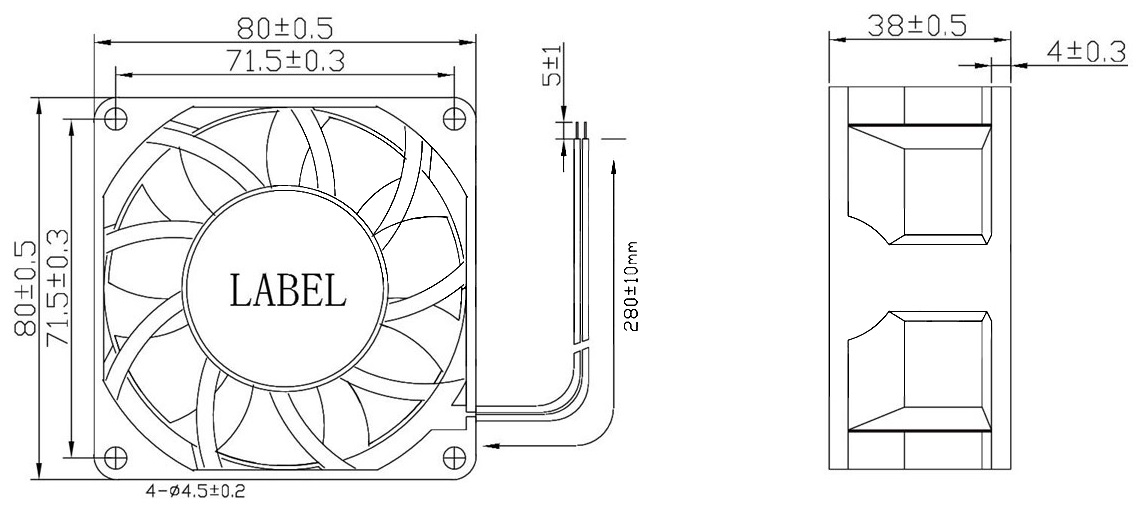

Dimension Drawing

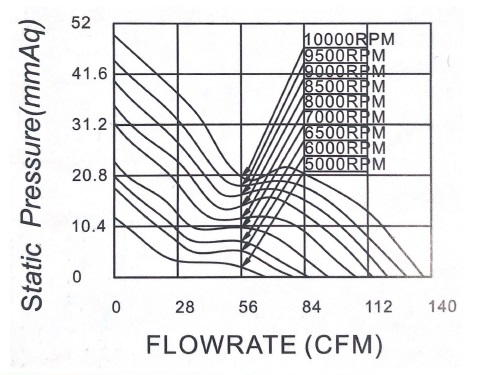

P&Q Curve
