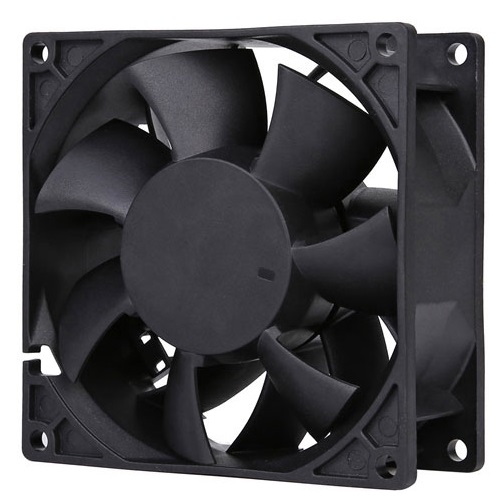

EC Fan
MFE9238
92 x 92 x 38 mm
Airflow
70.86~112.02 CFM
Speed
3500~5500 RPM
Noise
48~61.5 dB(A)
Product Specifications
| Size | 92 x 92 x 38 mm |
| Voltage | 80V |
| Motor | Brushless DC (EC Motor) |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFE9238-LB | 80-230 | nan | 3.5 | 3500 | 70.86 | 8.25 | 48.0 | Ball |
| MFE9238-MB | 80-230 | nan | 4 | 4500 | 94.09 | 14.26 | 55.1 | Ball |
| MFE9238-HB | 80-230 | nan | 4.3 | 5500 | 112.02 | 20.24 | 61.5 | Ball |
| MFE9238-HHB | 80-230 | nan | 4.7 | 6500 | 133.04 | 24.87 | 65.6 | Ball |

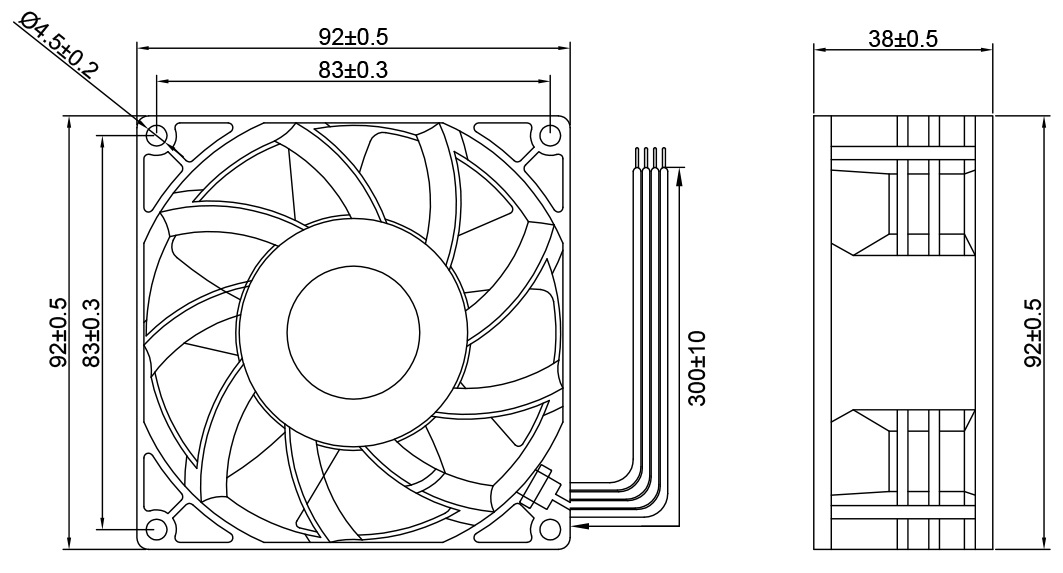

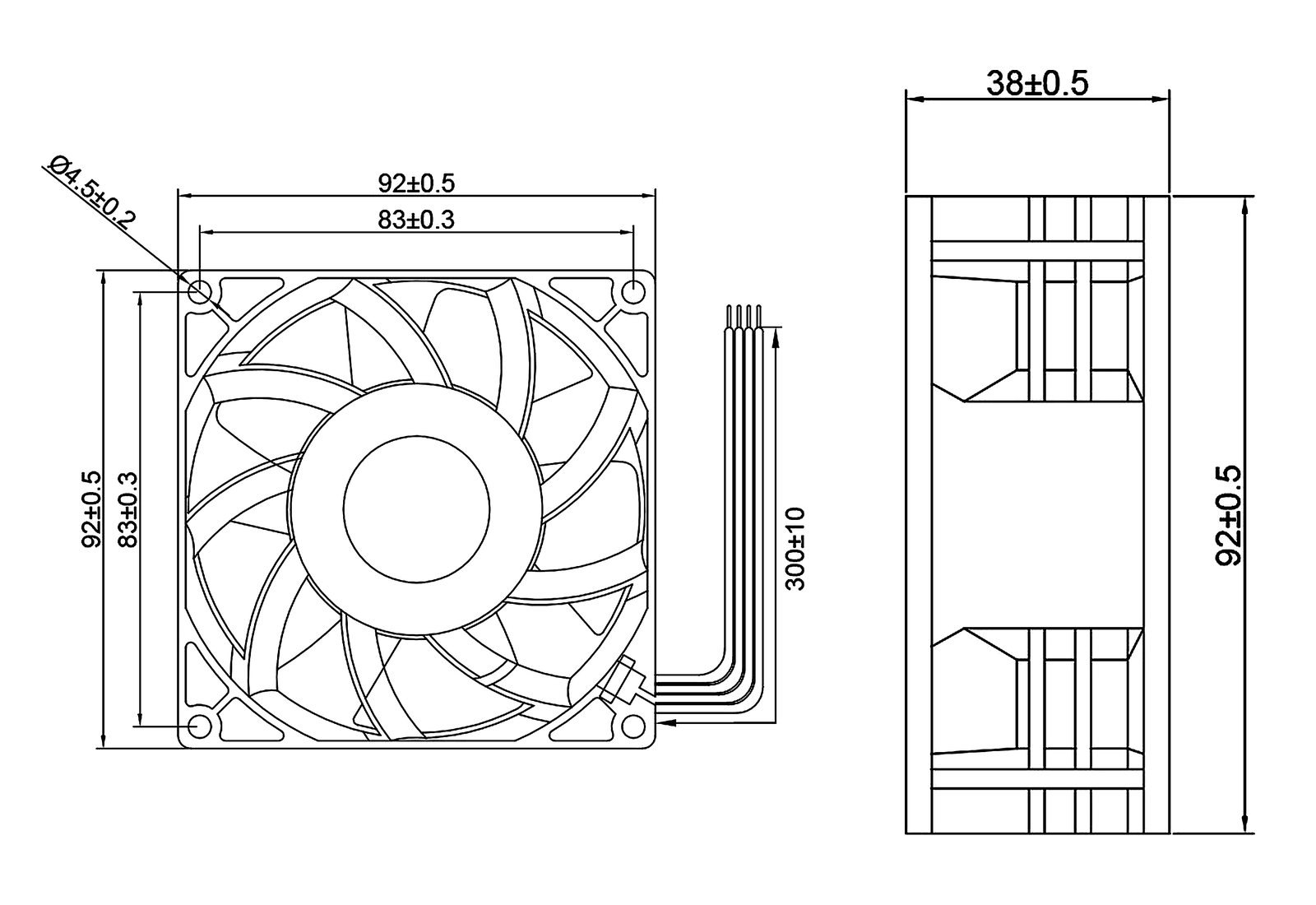

Dimension Drawing

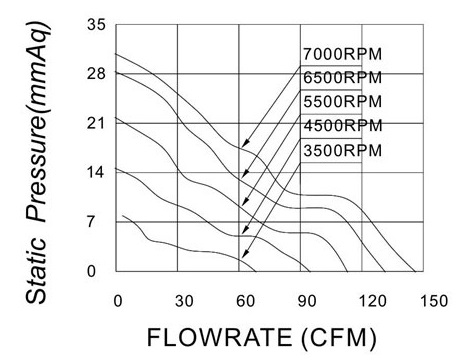

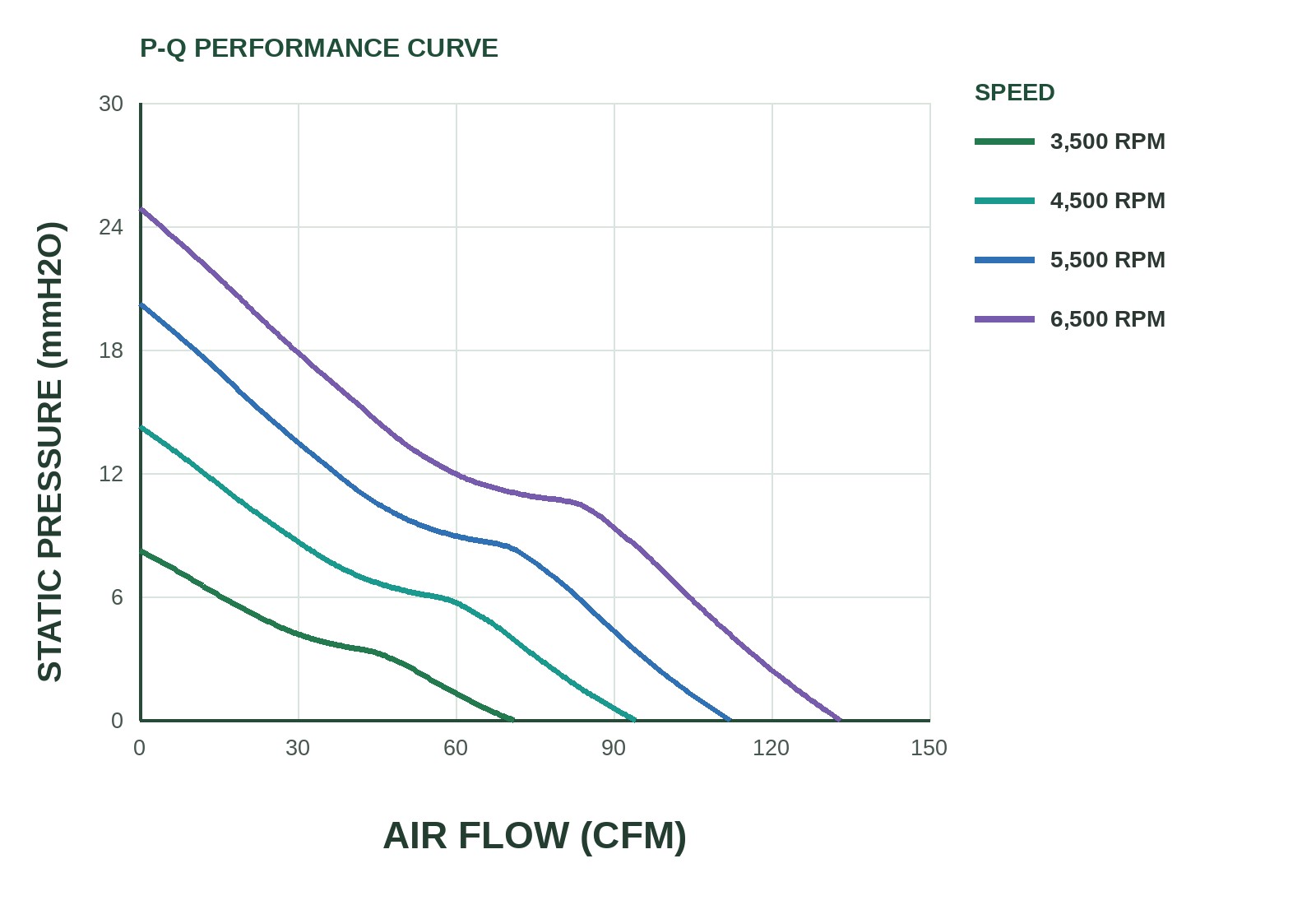

P&Q Curve
Signal Output Options
VPWM voltage speed control is an optional function for this series. FG / RDH / RDL / LD outputs depend on the complete part number.
| Signal | Direction | Function | Description |
|---|---|---|---|
| VPWM | Control Input | DC voltage speed control | EC series speed is set by an external DC control voltage, commonly 0-5 V or 0-10 V. The control line must share ground with the fan supply negative; input range, wire colour, impedance and minimum speed follow the complete part-number approval sheet. |
| FG / TACH | Status Output | Reports speed as a pulse train | Typically an open-collector/open-drain output with an external 4.7–10 kΩ pull-up; usually 2 pulses per revolution, RPM = FG Hz × 60 ÷ 2. Pull up to the host logic supply, never directly to the fan supply. |
| RDH / RDL | Alarm Output | Locked-Rotor Alarm Rotation Detector / Locked-rotor Alarm | RD is a locked-rotor status output — it does not indicate reverse rotation. RDH goes high when the fan is locked or stopped; RDL goes low. Usually an open-collector output; start-up delay and actual levels follow the complete part-number approval sheet. |
| LD | Alarm Output | Life Detection Life / Low-Speed Detection | Detects speed decay or fan ageing: the output goes low when speed falls to roughly 70% of rated. LD is not the same function as the RD locked-rotor alarm and is available on selected models only. |
Signal notes:RDH and RDL are two output polarities of the same locked-rotor alarm; LD is life/low-speed detection. The three are not interchangeable, and wire colour must never be used to identify a function. VPWM describes the EC series DC voltage speed-control capability — the actual model, wire colours and control range follow the approval sheet.
Typical signal diagrams
FG / TACH
Tachometer Pulse Output
A continuous pulse train lets the host calculate speed. Usually an open-collector output; pulses per revolution, pull-up voltage and resistor must be confirmed per model.
VPWM
DC voltage speed control input
The external DC control voltage is applied to the VPWM lead and shares ground with the supply negative; speed rises from minimum to maximum with the control voltage. Wire colour and range follow the approval sheet.
LD
Life Detection life / low-speed detection output
The output goes low when speed falls to roughly 70% of rated, indicating performance decay; LD differs from the RD locked-rotor alarm.
RDH / RDL
Two output polarities of the locked-rotor alarm
RDH is high on lock; RDL is low on lock. They differ only in polarity and both indicate whether the fan is locked or stopped; start-up delay and electrical ratings follow the complete part-number approval sheet.
How to read these diagrams:These are MAX FLOW function concept diagrams, not fixed electrical parameters for every series. Before design, obtain the wire colours, ratings, pull-up conditions, output polarity and failure states for the complete part number.
Part Number Code
MFESeries
120Frame
25Thickness
HSpeed
BBearing
VPWMSpeed Input
FSignal Output
Example MFE12025-HB-VPWM-F
From left to right: MFE series, frame, thickness, speed code, bearing code, VPWM speed-control input and signal-output code. F, RDH, RDL and LD are model-dependent signal outputs; available combinations follow the complete part-number approval sheet.
From left to right: MFE series, frame, thickness, speed code, bearing code, VPWM speed-control input and signal-output code. F, RDH, RDL and LD are model-dependent signal outputs; available combinations follow the complete part-number approval sheet.
MFE
EC fan (wide-voltage AC input, DC brushless motor)
120 / 25
120mm frame, 25mm thickness
(no voltage code)
EC fans take a wide-voltage input; the operating voltage range is listed in the specification table
Speed
LLow speed
MMedium speed
HHigh speed
HHUltra-high speed
Bearing
BBall Bearing
SSleeve Bearing
Signal
VPWMDC voltage speed-control input (commonly 0-5 V or 0-10 V, per the complete part-number approval sheet)
FFG tachometer pulse output (optional by model)
RDH / RDLHigh/low-level locked-rotor alarm output (optional by model)
LDLife/low-speed detection output (optional by model)
Some models carry additional custom suffixes (lead length, connector type, ingress protection, etc.);
Please confirm the complete part number with our sales team before ordering.
