DC Centrifugal Fan
MFL13391
Ø 133 x 91 m
Airflow
218 CFM
Speed
3800 RPM
Noise
62.5 dB(A)
Product Specifications
| Size | Ø 133 x 91 m |
| Motor | Brushless DC |
| Voltage | 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFL13391D1-H | 12 | 7 ~ 13.5 | 2.2 | 26.4 | 3800 | 218 | 41.8 | 62.5 |
| MFL13391D2-H | 24 | 18 ~ 27 | 1.1 | 26.4 | 3800 | 218 | 41.8 | 62.5 |
| MFL13391D4-H | 48 | 38 ~ 53 | 0.6 | 28.8 | 3800 | 218 | 41.8 | 39.2 |

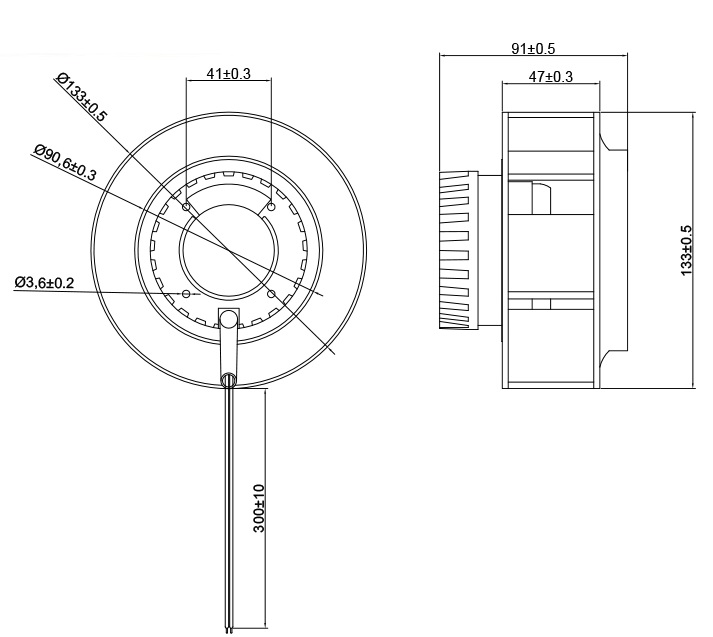

Dimension Drawing

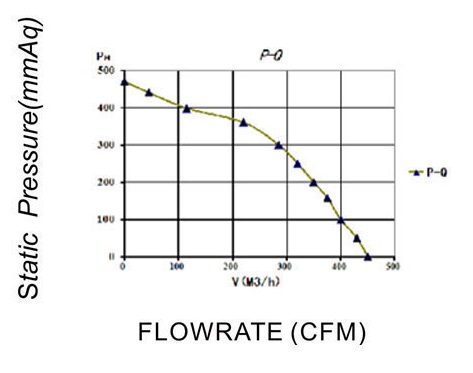

P&Q Curve
