MF 17251 Round Frame

add to inquiry
category： AC AXIAL FAN 、AC AXIAL FAN





MF 17251R

　

Size：Ø 172 x 51 mm
Motor：Shaded Pole
Frame：Aluminum Die-Cost
Impeller：PBT + 30% Fiber Glass. UL94V-0
Lead Wire：1007# 18AWG. UL/CSA
Insulation Resistance：
Min 10 M 0hm at 500VDC Between Terminal and the Frame
Dielectric Strength：1 min at 1,500VAC 50/60Hz
Bearing Type：B: 2 Ball Bearing. Operating Temp
Ball Bearing: Within -20 ~ 80°C
Life Expectancy：Ball Bearing: 50,000 hours at 60°C
Net Weight：920 grams

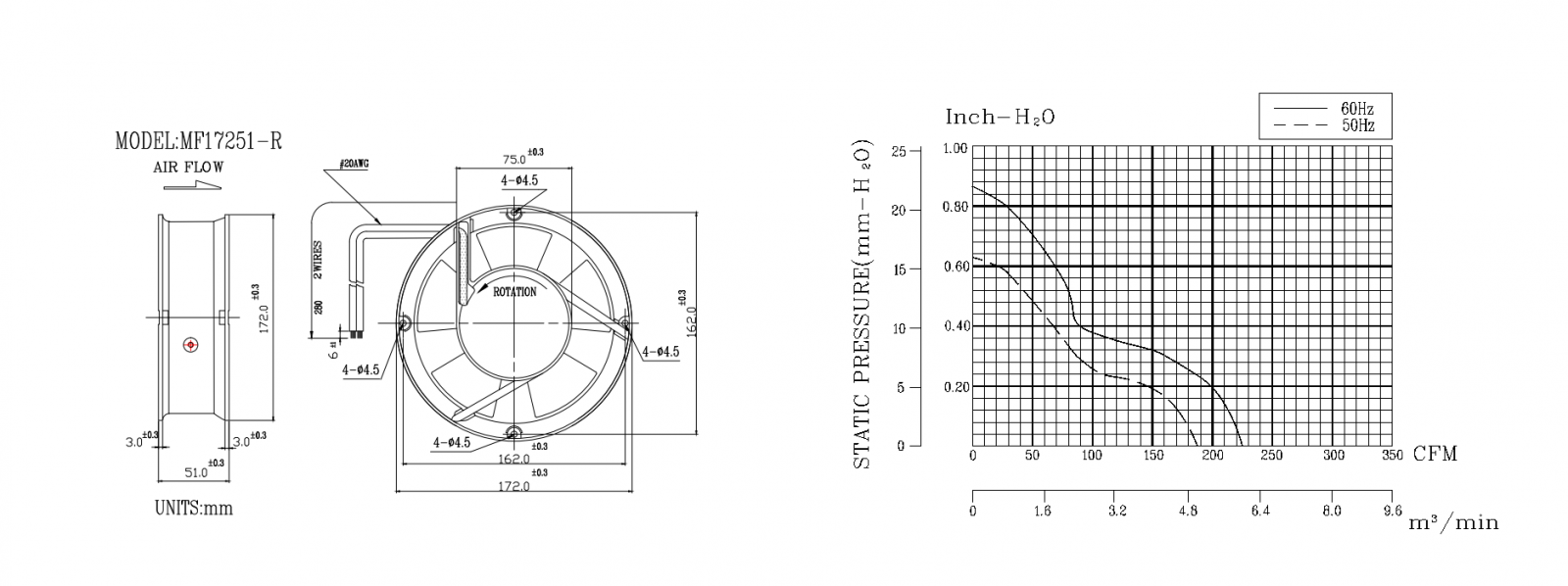

Ø172 X 51 mm
　

PART NO.

Bearing

Rated
Voltage

Freg

Current

input
power

Speed

Max.air
Flow

Max.air
Pressure

Noise

Weight

(V)

(Hz)

(A)

(W)

(R.P.M)

CFM

INH2O

dB-A

grams

17251RA1HSAT(L)
17251RA1HBAT(L)

Sleeve
Ball

110/120

50/60

0.55/0.48

45/52

2800/3100

190/220

0.55/0.72

53/59

920

17251RA2HSAT(L)
17251A2HBAT(L)

Sleeve
Ball

220/240

50/60

0.35/0.28

44/51

2800/3100

190/220

0.55/0.72

53/59

920

17251RA1DVHSA(L)
17251RA1DVHBA(L)

Sleeve
Ball

110/120

50/60

0.55/0.48

45/52

2800/3100

190/220

0.55/0.72

53/59

920

17251RA2DVHSA(L)
17251RA2DVHBA(L)

Sleeve
Ball

220/240

50/60

0.35/0.28

44/51

2800/3100

190/220

0.55/0.72

53/59

920



　
