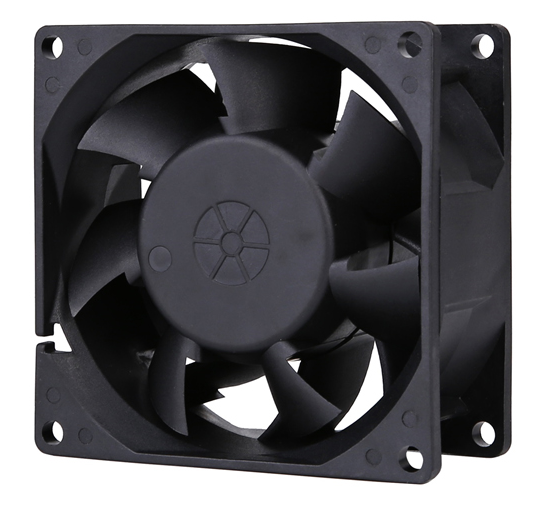

80X80X38mm

model:MFD8038





MFD8038



Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 176.6g















80 X 80 X 38 mm






MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD8038D1-L 12 7~13.5 0.5 6 4000 1.413 49.89 8.51 0.335 46.8
MFD8038D1-M 0.9 10.8 5500 1.988 70.21 15.83 0.623 53.2
MFD8038D1-H 1.2 14.4 6000 2.123 74.98 18.78 0.739 58.9
MFD8038D1-HH 1.6 19.2 7000 2.592 91.51 25.52 1.005 60.5
MFD8038D1-VH 2.1 25.2 8500 3.089 109.06 37.26 1.467 66.6
MFD8038D2-L 24 18 ~ 26.5 0.25 6 4000 1.413 49.89 8.51 0.335 46.8
MFD8038D2-M 0.45 10.8 5500 1.988 70.21 15.83 0.623 53.2
MFD8038D2-H 0.6 14.4 6000 2.123 74.98 18.78 0.739 58.9
MFD8038D2-HH 0.8 19.2 7000 2.592 91.51 25.52 1.005 60.5
MFD8038D2-VH 1.05 25.2 8500 3.089 109.06 37.26 1.467 66.6
MFD8038D4-L 48 36 ~ 54 0.13 6 4000 1.413 49.89 8.51 0.335 46.8
MFD8038D4-M 0.23 10.8 5500 1.988 70.21 15.83 0.623 53.2
MFD8038D4-H 0.36 14.4 6000 2.123 74.98 18.78 0.739 58.9
MFD8038D4-HH 0.4 19.2 7000 2.592 91.51 25.52 1.005 60.5
MFD8038D4-VH 0.53 25.2 8500 3.089 109.06 37.26 1.467 66.6
