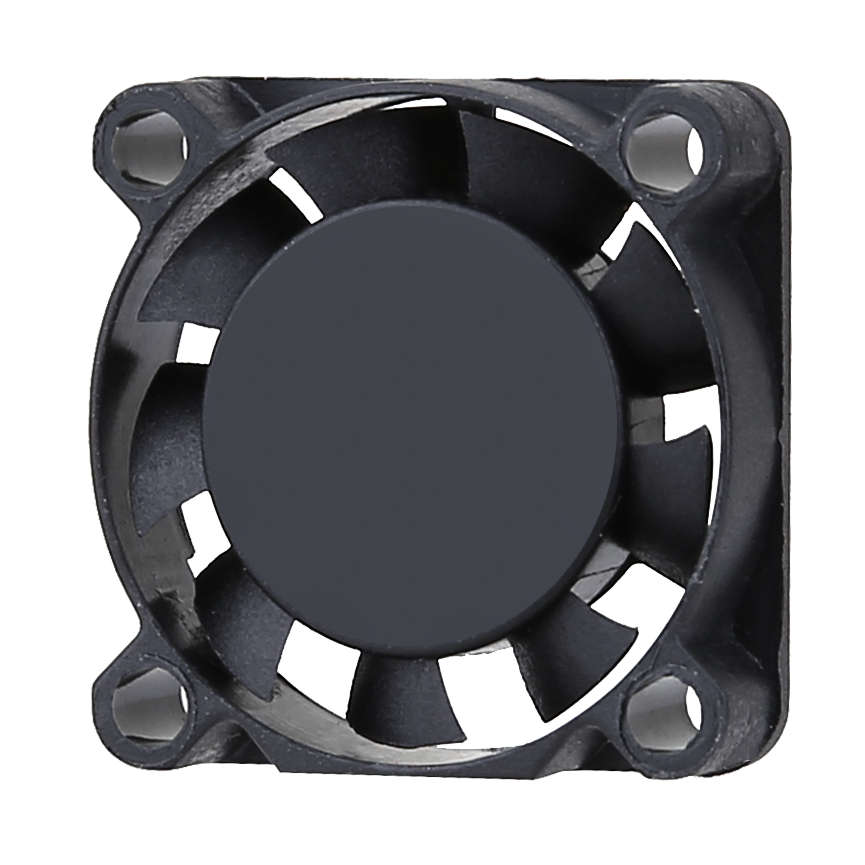

25X25X07mm

model:MFD2507

add to inquiry
category： DC FAN 、DC FAN (25/40/50mm)





MFD2507

　

Bearing system: Sleeve ,HY

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 5 g

　

　

　

　

　

　

　

25 X 25 X 07 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD2507D05-L 5 3.6 to 6.8 0.11 0.55 7000 0.035 1.22 2.16 0.085 19.6
MFD2507D05-M 0.17 0.85 10000 0.044 1.55 3.1 0.122 23.5
MFD2507D05-H 0.23 1.15 14000 0.054 1.9 3.8 0.15 26.4
MFD2507D05-HH 0.3 1.5 17000 0.08 2.81 4.5 0.177 31.2
MFD2507D1-L 12 6.0 to 13.5 0.03 0.36 7000 0.035 1.22 2.16 0.085 19.6
MFD2507D1-M 0.06 0.72 10000 0.044 1.55 3.1 0.122 23.5
MFD2507D1-H 0.09 1.08 14000 0.054 1.9 3.8 0.15 26.4
MFD2507D1-HH 0.1 1.2 17000 0.08 2.81 4.5 0.177 31.2

　

　
