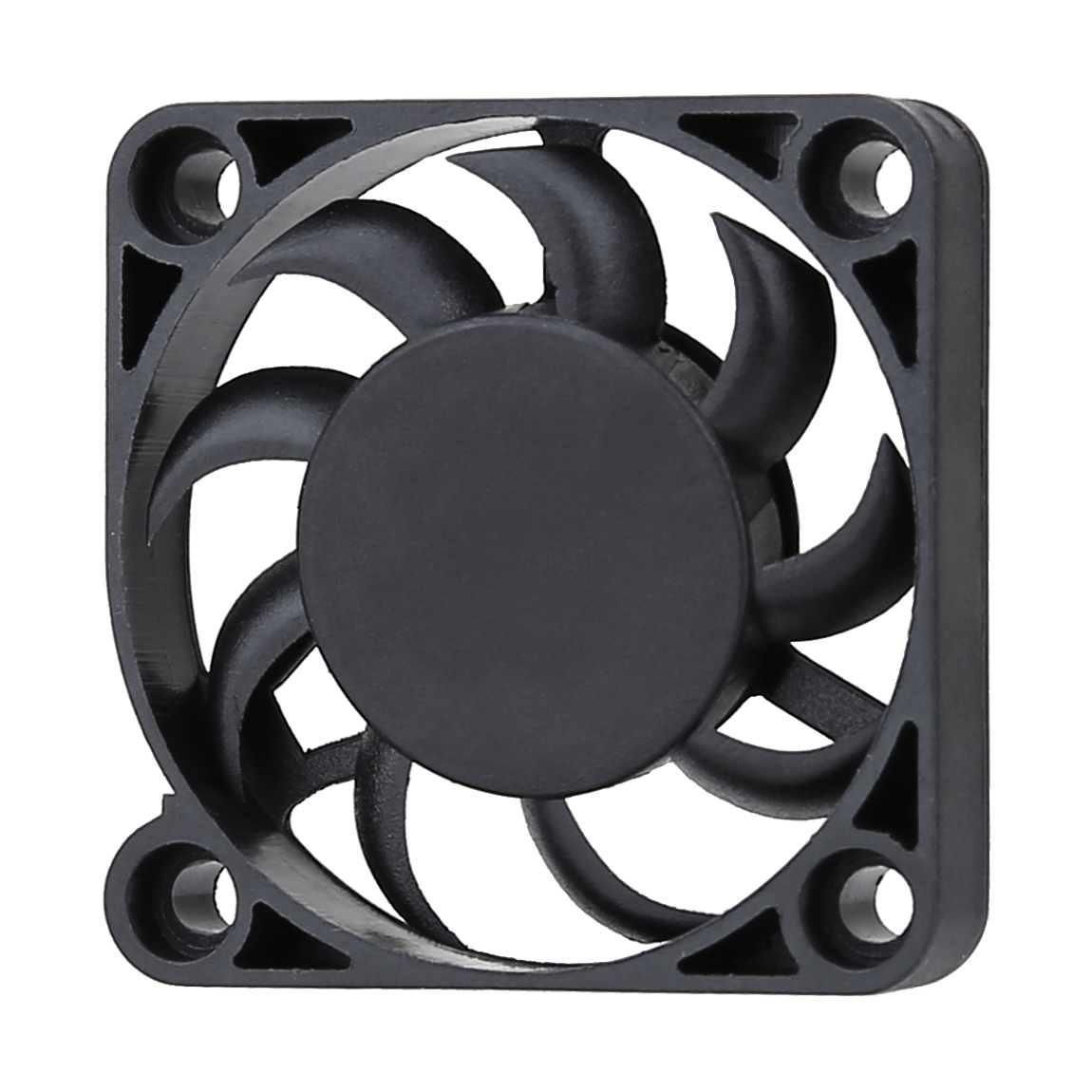

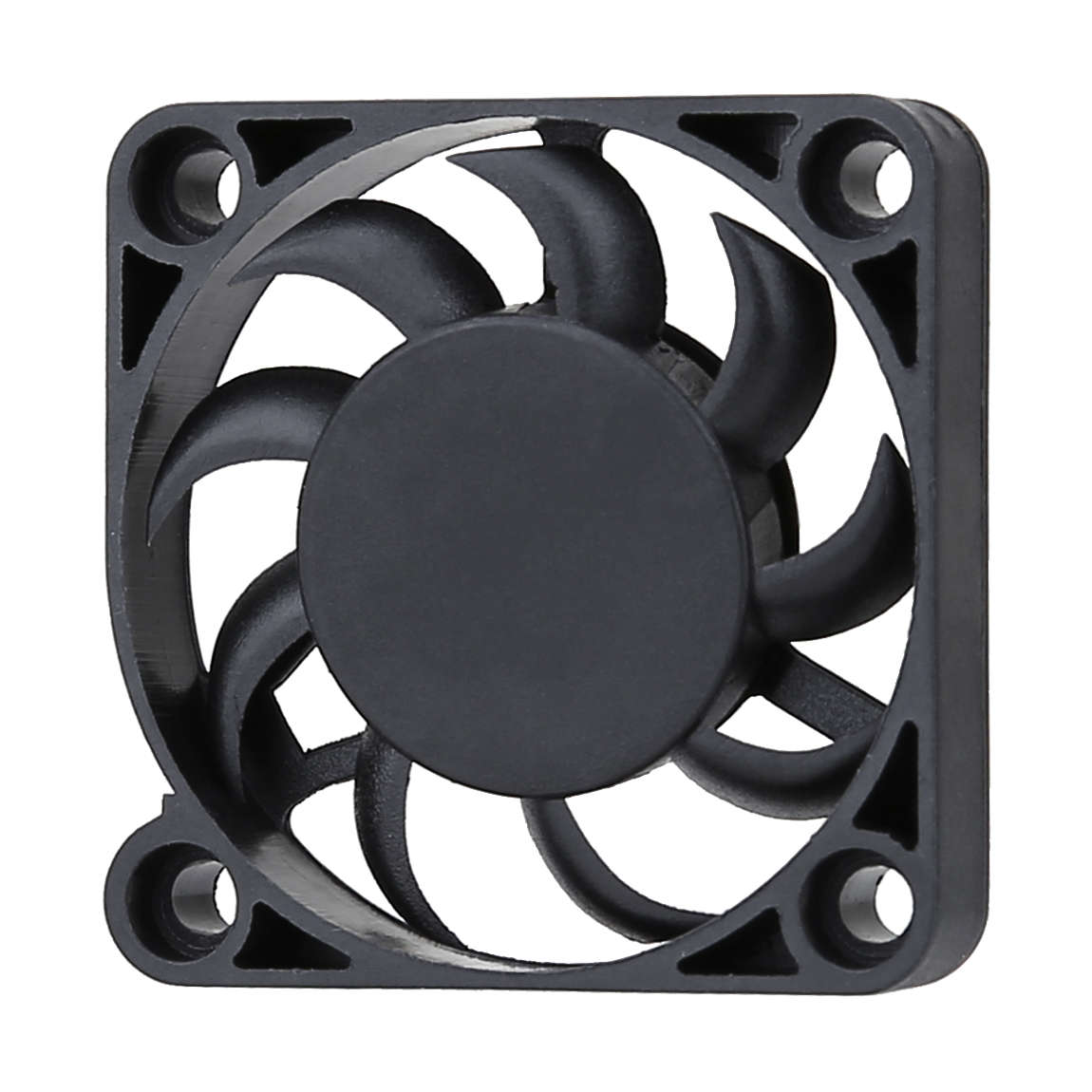

40X40X07mm

model:MFD4007

add to inquiry
category： DC FAN 、DC FAN (25/40/50mm)





MFD4007

　

Bearing system: Sleeve ,HY

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 14.5 g

　

　

　

　

　

　

　

40 X 40 X 7 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD4007D05-L 5 1.8 ~ 6 0.12 0.6 4500 0.089 3.14 0.84 0.033 23.5
MFD4007D05-LM 0.144 0.72 5000 0.104 3.67 1.17 0.046 24.5
MFD4007D05-ML 0.168 0.84 5500 0.113 3.96 1.40 0.055 25.6
MFD4007D05-M 0.192 0.96 6000 0.131 4.60 1.65 0.065 27.5
MFD4007D05-H 0.2 1.02 6500 0.144 5.06 2.02 0.079 29.3
MFD4007D05-HH 0.216 1.08 7000 0.151 5.31 2.17 0.085 30.4
MFD4007D05-VH 0.24 1.2 7500 0.153 5.37 2.40 0.094 31.5
MFD4007D1-L 12 8.5 ~ 13.5 0.05 0.6 4500 0.089 3.14 2.84 0.033 23.5
MFD4007D1-LM 0.06 0.72 5000 0.104 3.67 1.17 0.046 24.5
MFD4007D1-ML 0.07 0.84 5500 0.113 3.96 1.40 0.055 25.6
MFD4007D1-M 0.08 0.96 6000 0.131 4.60 1.65 0.065 27.5
MFD4007D1-H 0.085 1.02 6500 0.144 5.06 2.02 0.079 29.3
MFD4007D1-HH 0.09 1.08 7000 0.151 5.31 2.17 0.085 30.4
MFD4007D1-VH 0.1 1.2 7500 0.153 5.37 2.40 0.094 31.5

　

　
