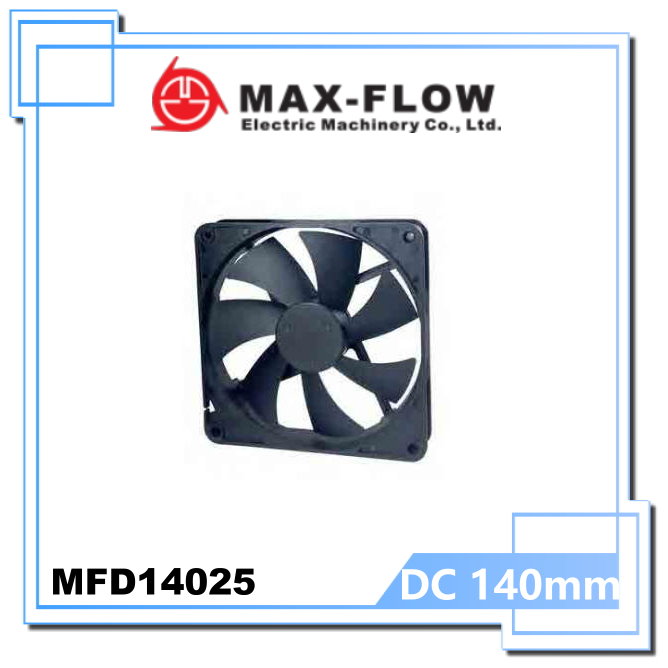

140X140X25mm

model:MFD14025

DC FAN SIZE 140X140X25mm
Voltage options available 12V, 24V, 48V DC
Large size thin dc fan

add to inquiry
category： DC FAN 、DC FAN (120/172mm)





MFD14025

　

　

SIZE : 140 X 140 X 25

Bearing system: BALL ,Sleeve

Frame: PBT UL94V-0

Impeller:PBT UL94V-0

Operating Temp：

BALL : -20 ~ 80°C

Sleeve: Within -10 ~ 60°C
Life Expectancy：

BALL : 50,000 hours at 25°C

Sleeve: 25,000 hours at 25°C

Weight:170g

　

　

　
 　

 MODEL

Rated Voltge

Operating Voltage Range

Rated Current

Rated

put Power

Speed

Maximun

Air Flow

Maximun

Air Pressure

Noise

PART NO.

VDC

VDC

Amp

Watt

R.P.M

m3/min

CFM

mmH2O

INH2O

DB-A

MFD14025D1-L

12

7.5 ~ 13.5

0.1

1.2

1500

1.757

62.07

1.3

0.051

28

MFD14025D1-M

0.23

2.76

2000

2.499

88.28

2.54

0.1

36

MFD14025D1-H

0.47

5.64

2500

3.193

112.8

3.87

0.152

43.1

MFD14025D1-HH

1

12

2900

3.777

133.43

5.35

0.211

47.1

MFD14025D2-L

24

18~ 26.5

0.05

1.2

1500

1.757

62.07

1.3

0.051

28

MFD14025D2-M

0.12

2.76

2000

3.193

88.28

2.54

0.1

36

MFD14025D2-H

0.24

5.64

2500

3.777

112.8

3.87

0.152

43.1

MFD14025D2-HH

0.5

12

2900

1.757

133.43

5.35

0.211

47.1

MFD14025D4-L

48

36 ~ 54

0.03

1.2

1500

1.757

62.07

1.3

0.051

28

MFD14025D4-M

0.06

2.76

2000

2.499

88.28

2.54

0.1

36

MFD14025D4-H

0.12

5.64

2500

3.193

112.8

3.87

0.152

43.1

MFD14025D4-HH

0.25

12

2900

3.777

133.43

5.35

0.211

47.1

　

     　
