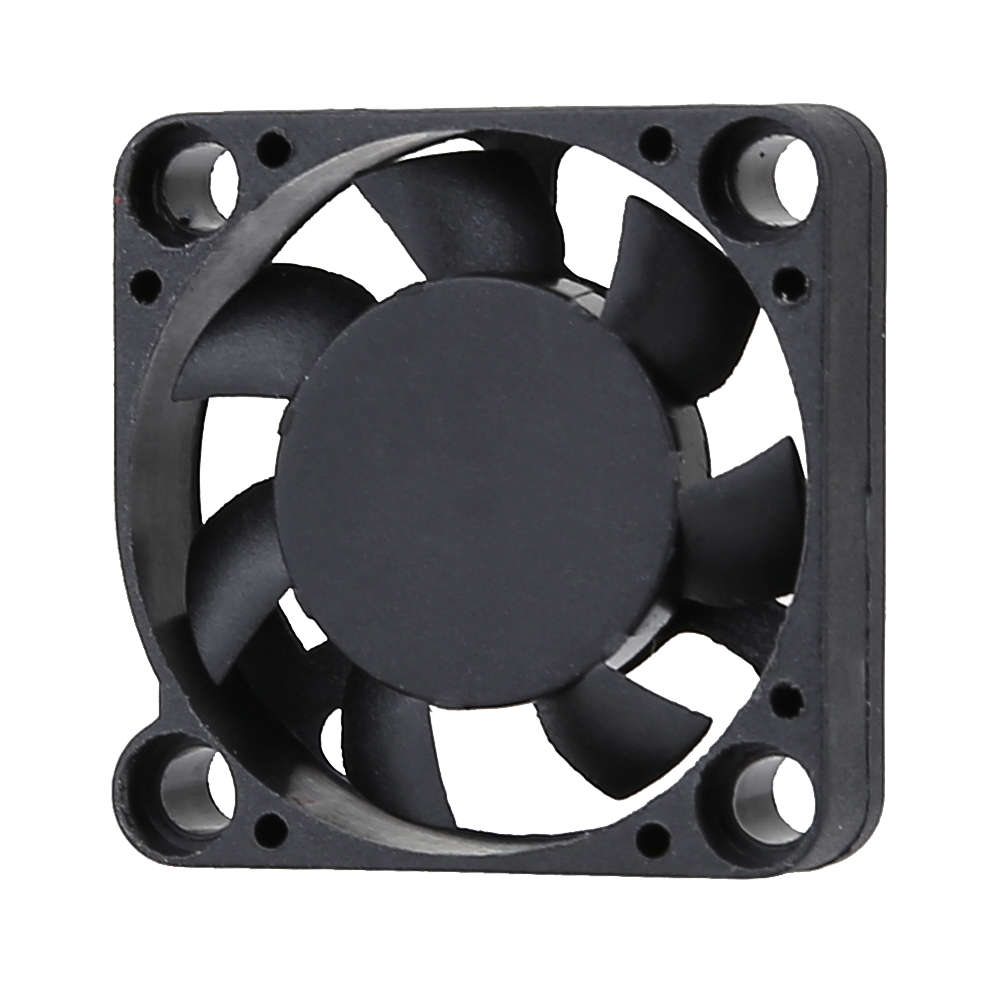

30X30X7mm

model:MFD3007

add to inquiry
category： DC FAN 、DC FAN (25/40/50mm)





MFD3007

　

Bearing system: Sleeve ,HY

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 5 g

　

　

　

　

　

　

　

30 X 30 X 07 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD3007D05-L(X) 5 1.8 to 6 0.14 0.72 6000 0.056 1.99 1.71 0.067 25.5
MFD3007D05-M(X) 0.17 0.84 8000 0.075 2.66 2.70 0.106 27.4
MFD3007D05-H(X) 0.19 0.96 10000 0.098 3.46 4.13 0.163 30.1
MFD3007D05-HH(X) 0.22 1.08 11000 0.107 3.78 4.94 0.194 32.0
MFD3007D05-VH(X) 0.24 1.2 13000 0.120 4.25 8.25 0.325 34.9
MFD3007D1-L(X) 12 8.5 to 13.5 0.06 0.72 6000 0.056 1.99 1.71 0.067 25.5
MFD3007D1-M(X) 0.07 0.84 8000 0.075 2.66 2.70 0.106 27.4
MFD3007D1-H(X) 0.08 0.96 10000 0.098 3.46 4.13 0.163 30.1
MFD3007D1-HH(X) 0.09 1.08 11000 0.107 3.78 4.94 0.194 32.0
MFD3007D1-VH(X) 0.1 1.2 13000 0.120 4.25 8.25 0.325 34.9

　

　
