60X60X25 BLOWER

model:MFB6025

add to inquiry
category： DC Blower 、DC (60mm / 140 mm)





MFB6025

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 70g

　

　

　

　

　

　

　

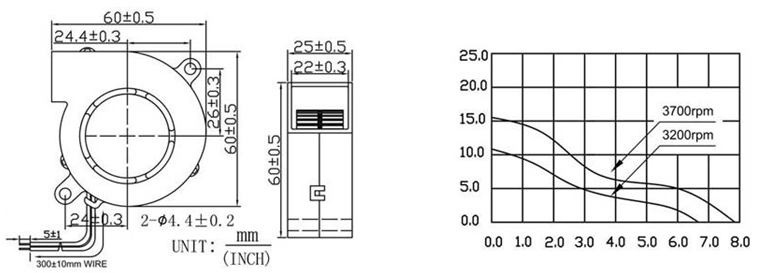

60 X 60 X 25 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maimun Air Flow Maimun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFB6025D05-H 5 3.6 to 6.8 0.43 2.16 3200 0.19 6.71 10.86 0.428 34
MFB6025D05-H 0.58 2.88 3700 0.223 7.88 15.49 0.61 39
MFB6025D1-M 12 6.0 to 13.5 0.18 2.16 3200 0.19 6.71 10.86 0.428 34
MFB6025D1-H 0.22 2.88 3700 0.223 7.88 15.49 0.61 39
MFB6025D2-M 24 18 to 26.5 0.09 2.16 3200 0.19 6.71 10.86 0.428 34
MFB6025D2-H 0.12 2.88 3700 0.223 7.88 15.49 0.61 39

　

　
