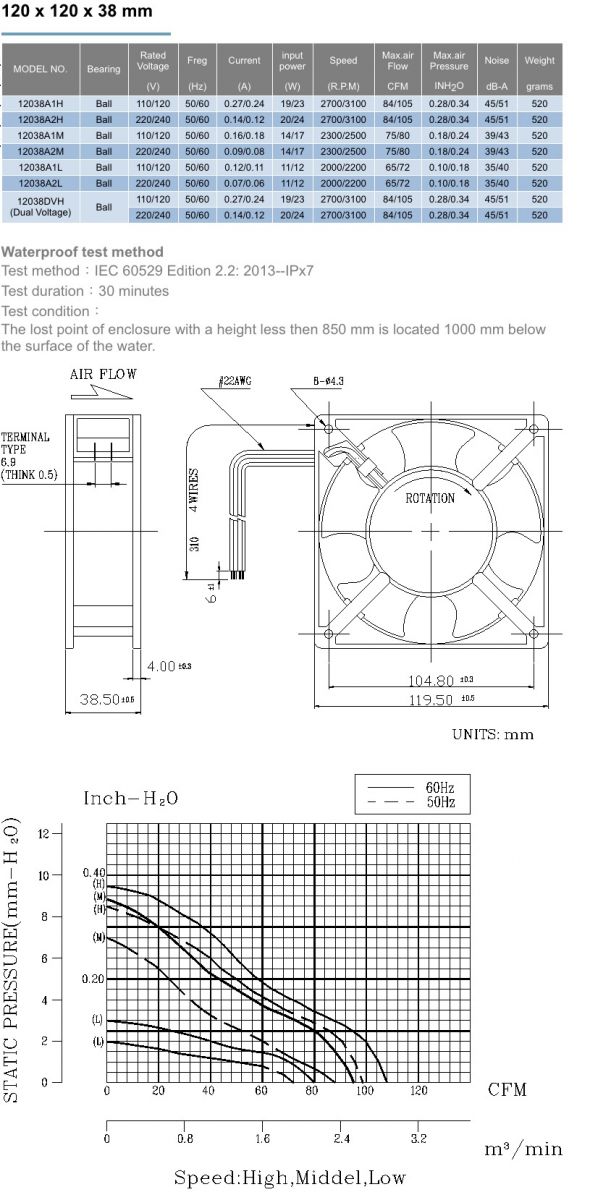

MF12038-IPX7

add to inquiry
category:
 Size120 x 120 x 38mm (4.71 x 4.71 x 1.50inch)
Motor
Shaded Pole
Frame
Aluminum Die-Cost
Impeller
PBT + 30% Fiber Glass. UL94V-0
Lead Wire
1007# 22AWG. UL/CSA
Waterproof ratingIPX7
Insulation Resistance
Min 10 M 0hm at 500VDC Between Terminal and the Frame
Dielectric Strength
1 min at 1,500VAC 50/60Hz
Bearing Type
B: 2 Ball Bearing
Operating Temp
Ball Bearing: Within -20 ~ 80°C
Life Expectancy
Ball Bearing: 50,000 hours at 60C
Net Weight520 grams
