50X50X10mm

model:MFD5010A

add to inquiry
category： DC FAN 、DC FAN (25/40/50mm)

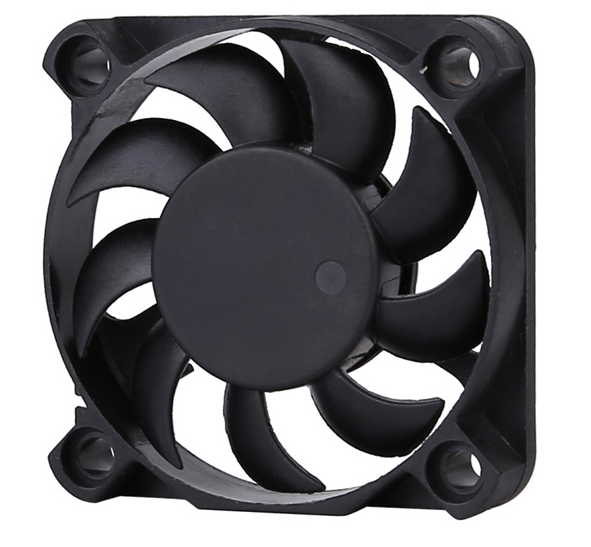

MFD5010A

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 15 g

　

　

　

　

　

　

　

50 X 50 X 10 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD5010AD05-L 5 1.8~6 0.072 0.36 4000 0.231 8.41 1.65 0.065 26.8
MFD5010AD05-LM 0.096 0.48 4500 0.257 9.09 2.02 0.081 29.7
MFD5010AD05-M 0.12 0.6 5000 0.300 10.50 2.58 0.102 31.0
MFD5010AD05-LH 0.144 0.72 5500 0.308 10.80 2.84 0.112 33.5
MFD5010AD05-H 0.168 0.84 6000 0.345 12.10 3.34 0.131 34.2
MFD5010AD05-HH 0.19 0.96 6500 0.380 13.40 3.85 0.152 36.8
MFD5010AD1-L 12 8.5~13.5 0.03 0.36 4000 0.231 8.14 1.65 0.065 26.8
MFD5010AD1-LM 0.04 0.48 4500 0.257 9.09 2.02 0.081 29.7
MFD5010AD1-M 0.05 0.6 5000 0.300 10.50 2.58 0.102 31.0
MFD5010AD1-LH 0.06 0.72 5500 0.308 10.80 2.84 0.112 33.5
MFD5010AD1-H 0.07 0.84 6000 0.345 12.10 3.34 0.131 34.2
MFD5010AD1-HH 0.08 0.96 6500 0.380 13.40 3.85 0.152 36.8

　

　
