40X40X28mm

model:MFD4028

add to inquiry
category： DC FAN 、DC FAN (25/40/50mm)

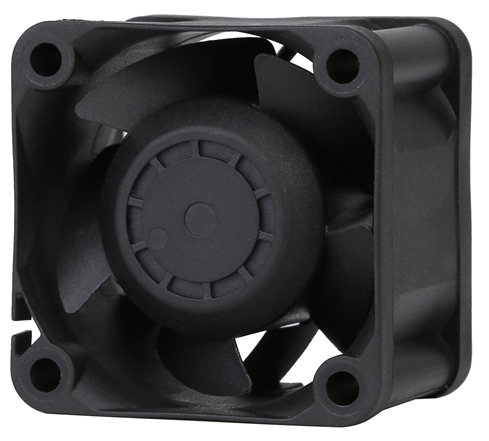

MFD4028

　

Bearing system: BALL ,Sleeve

Frame: Thermoplastic PBT UL94V-0

Impeller:Thermoplastic PBT UL94V-0

Weight: 35.2 g

　

　

　

　

　

　

　

40 X 40 X 28 mm
　



MODEL Rated Voltge Operating Voltage Range Rated Current Rated Input Power  Speed Maximun Air Flow Maximun Air Pressure Noise
PART NO. VDC VDC Amp Watt R.P.M m3/min CFM mmH2O INH2O DB-A
MFD4028D1-M 12 7~13.5 0.15 1.8 7000 0.247 8.73 6.07 0.239 36.6
MFD4028D1-H 0.23 2.76 8500 0.302 10.60 8.70 0.343 37.3
MFD4028D1-HH 0.31 3.72 10000 0.358 12.60 12.05 0.474 41.1
MFD4028D1-HV 0.4 4.8 12000 0.427 15.00 16.84 0.663 47.3
MFD4028D1-UH 0.48 5.76 14000 0.507 17.90 22.74 0.895 50.9
MFD4028D1-VH 0.6 7.2 16000 0.579 20.40 29.62 1.166 52.6
MFD4028D2-M 24 18~26.5 0.08 1.8 7000 0.247 8.73 6.07 0.239 36.6
MFD4028D2-H 0.115 2.76 8500 0.302 10.60 8.70 0.343 37.3
MFD4028D2-HH 0.16 3.72 10000 0.358 12.60 12.05 0.474 41.1
MFD4028D2-HV 0.2 4.8 12000 0.427 15.00 16.84 0.663 47.3
MFD4028D2-UH 0.24 5.76 14000 0.507 17.90 22.74 0.895 50.9
MFD4028D2-VH 0.3 7.2 16000 0.579 20.40 29.62 1.166 52.6

　

　
